Timing Belt Pulley , type XH300 ,XH400

Timing Belt Pulley , type XH300 ,XH400 supplier Timing Belt Pulley , type XH300 ,XH400 supplier Timing Belt Pulley , type XH300 ,XH400 supplier

Large Image :  Timing Belt Pulley , type XH300 ,XH400

Product Details:

Place of Origin:China
Brand Name:MW
Certification:ISO
Model Number:XH300 , XH400

Payment & Shipping Terms:

Minimum Order Quantity:100 Pieces
Price:Negotiation
Packaging Details:Standard sea worthy package
Delivery Time:Negotiation
Payment Terms:T/T, L/C
Supply Ability:1000000Pieces /Week
Detailed Product Description



Timing Belt Pulley , type XH300 ,XH400





Quick Detail:



Timing Belt Pulley

Aluminum, Steel and so on material
Standard and non-standard Timing Belt pulley available
With high quality and competitive price

Prompt delivery

Package as per customer’s demand.





Description:



We are the leading top Chinese manufacturer, and are specializing in various high quality timing belt pulley

1. European standard and American standard

2. Material: 1045 carbon steel, aluminum alloy, brass and nylon available.

3. Surface treatment: black oxidized, phosphate, anodize, zinc-plating

4. Tolerance: conform to customers requirement

5. Pilot bore, taper bore, QD bore

6. OEM/ODM service offered

7. Timing pulley type: XH300,XH400





Applications:

Our timing belt pulley are used in Textile Machineries, Pulp & Paper mill Machineries, Pharmaceutical Machineries, Printing Machineries, Packaging Machineries, Rolling Mill Machineries, Graphite Machineries, Food Processing Machineries, Material Handling Pulleys, Bakery Machineries, Plastic Machineries, General Machineries, Mechanical Machineries, Hydraulic Machineries, Automobile Industries.





Specification:

Pulley Teeth Profile

HTD:

3M,5M,8M,14M,20M

T&AT:

T2.5,T5,T10, AT5,AT10,AT20

English pitch:

 MXL/ 0.80" , XL/ 1/5" ,L/ 3/8" ,H/ 1/2" .XH/ 7/8" , XXH/ 1.25" ,

STPD:

S2M,S3M,S4.5M,S5M,S8M,S14M

RPP:

5M,8M,14M,20M

PGGT (Power Grip GT)

2MR,3MR,5MR,8MR,14MR

PCGT  (Poly Chain GT)

8M,14M

Bore type:

taper bore

pilot bore/straight bore







Pulley Materials

Type

Characteristics

Aluminum

suitable for moderate power transmission

light weight / reduced rotational inertia

moderate chemical and corrosion resistance

standard material for stock pulleys

Steel

suitable for high power transmission

durable

limited chemical and corrosion resistance

aesthetic material

Stainless Steel

suitable for high power transmission durable

meets FDA regulations

excellent chemical and corrosion resistance

aesthetic material

Delrin

suitable for high power transmission

excellent chemical and corrosion resistance

nonmetallic

stainless steel flanges recommended

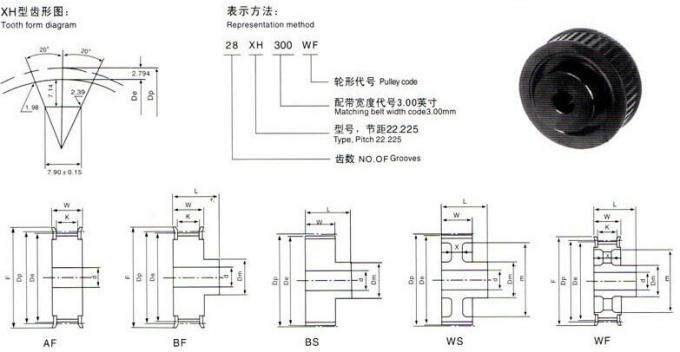

Technique parameter:

Timing Belt Pulley , type XH300 ,XH400



XH 300(76.2mm)

ITEM

TEETH

STRUCTURE

Dp

O.D.(De)

W

L

K

X

Dm

 d

E

 Flange I.D.

Flange Type

18H

18

A/B

127.34

124.55

94

110

84

-

80

28

-

141

84

F-4014184

19H

19

A/B

134.41

131.62

94

110

84

-

90

28

-

146

93

F-4014693

20H

20

A/B

141.49

138.69

94

110

84

-

90

28

-

155

98

F-4015598

21H

21

A/B

148.56

145.77

94

110

84

-

120

28

-

160

105

F-4016105

22H

22

A/B

155.64

152.84

94

110

84

-

100

28

-

169

112

F-40169112

23H

23

A/B

162.7

159.91

94

110

84

-

120

28

-

175

124

F-40175124

24H

24

A/B

169.79

166.99

94

110

84

-

120

28

-

183

126

F-40183126

25H

25

A/B

176.86

174.04

94

110

84

-

120

28

-

188

134

F-40188134

26H

26

A/B

183.93

181.14

94

110

84

-

120

28

-

197

141

F-40197141

27H

27

A/B

191.01

188.22

94

110

84

-

120

28

-

205

148

F-40205148

28H

28

A/B

198.09

195.29

94

110

84

-

150

28

-

211

155

F-40211155

30H

30

A/B

212.23

209.44

94

110

84

-

150

28

-

226

169

F-40226169

32H

32

B/W

226.38

223.59

94

110

84

31

150

30

173

-

-

-

34H

34

B/W

240.53

237.74

94

110

84

31

150

30

177

-

-

-

38H

38

B/W

268.83

266.03

94

110

84

31

150

30

216

-

-

-

40H

40

B/W

282.98

280.18

94

120

84

31

150

30

230

-

-

-

46H

46

B/W

325.42

322.63

94

120

84

31

175

30

272

-

-

-

48H

48

B/W

339.57

336.78

94

120

84

31

175

30

286

-

-

-

58H

58

B/W

410.32

407.52

94

120

84

31

175

30

357

-

-

-

60H

60

B/W

424.47

421.67

94

120

84

31

175

30

370

-

-

-

70H

70

B/W

495.21

492.42

94

120

84

31

175

30

442

-

-

-

72H

72

B/W

509.36

506.56

94

120

84

31

175

30

456

-

-

-

80H

80

B/W

565.95

563.16

94

120

84

31

175

30

513

-

-

-

84H

84

B/W

594.25

591.46

94

120

84

31

175

30

456

-

-

-

96H

96

B/W

679.15

676.35

94

120

84

31

175

30

626

-

-

-

120H

120

B/W

848.93

846.14

94

120

84

31

175

30

796

-

-

-

Timing Belt Pulley , type XH300 ,XH400



XXH 400(101.6mm)

ITEM

TEETH

STRUCTURE

Dp

O.D.(De)

W

L

K

X

Dm

 d

E

 Flange I.D.

Flange Type

18XXH

18

B/W

181.91

178.87

121

140

111

-

120

28

-

198

140

F-50198140

19XXH

19

B/W

192.02

188.97

121

140

111

-

120

28

-

208

140

F-50208140

20XXH

20

B/W

202.13

199.08

121

140

111

-

130

28

-

208

150

F-50208150

21XXH

21

B/W

212.23

209.19

121

140

111

-

130

28

-

229

160

F-50239170

22XXH

22

B/W

222.34

219.29

121

140

111

-

130

28

-

239

170



24XXH

24

B/W

242.55

239.5

121

140

111

45

150

28

190

-

-

-

25XXH

25

B/W

252.66

249.61

121

140

111

45

150

28

199

-

-

-

26XXH

26

B/W

262.76

259.72

121

140

111

45

150

28

209

-

-

-

27XXH

27

B/W

272.87

269.82

121

140

111

45

150

28

219

-

-

-

30XXH

30

B/W

313.19

300.14

121

140

111

45

150

28

250

-

-

-

40XXH

40

B/W

404.25

401.21

121

140

111

45

150

28

352

-

-

-

48XXH

48

B/W

485.1

482.06

121

140

111

45

175

30

432

-

-

-

60XXH

60

B/W

606.38

603.33

121

140

111

45

175

30

554

-

-

-

72XXH

72

B/W

727.66

724.61

121

140

111

45

175

35

675

-

-

-

90XXH

90

B/W

909.57

906.52

121

140

111

45

175

35

856

-

-

-

timing pulley, timing belt pulley, gt2 timing pulley, aluminium timing pulley, xl timing belt pulley, mxl timing pulley, small timing belt pulley, at20 timing pulley, timing belt tensioner pulleys, t2.5 timing pulley, t5 timing pulley, taper bush timing pulley, time belt tensioner pulley, aluminium timing belt pulley, timing idler pulley, t2.5 timing belt pulley, steel timing belt pulleys, xl timing pulley, t2.5 t5 t10 t20 timing belt pulley, stainless steel timing pulley, mxl timing belt pulley, pulleys for timing belts, htd timing belt pulley, aluminum timing pulley with flanges, htd 8m timing belt pulley, timing pulley t10, cast iron timing pulley, timing pulley bar, timing belt pulley conveyor belt pulleys, timing belt pulleys for machine, timing belt and pulley, htd timing pulley, timing pulley stock, t10 timing pulley, at10 timing pulley





Competitive Advantage:



More than 20 years advanced technology and experience of us will give strong support for the timing belt pulley you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.

Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.

Take our scale economy, raw material superiority, and sincerity for clients to account, our price has a great competitiveness. They are good value and cost effective than your imagine.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
