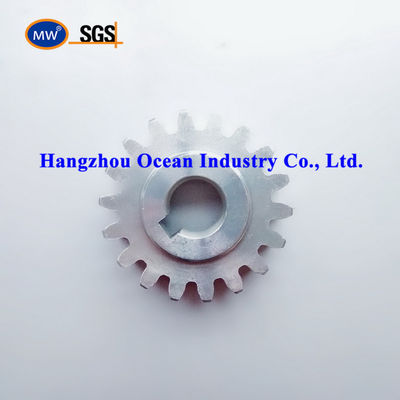

Aluminum CNC Machining 0.04mm Gears And Pinions

Large Image : Aluminum CNC Machining 0.04mm Gears And Pinions

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	MW
Model Number:	M1 M1.5 M2 M2.5 M3 M4 M5

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	USD1-20/PCS
Packaging Details:	STANDARD SEA WORTHY PACKAGE
Delivery Time:	20-40DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	5000000PCS/MONTH

Contact Now

Detailed Product Description

Shape:	Spur	Warranty:	1.5 Years
Tooth Profile:	Herringbone Gear	Material:	Aluminum, Brass
Processing:	CNC Machining	OEM:	Support
Tolerance:	0.01-0.05mm Or Customized
High Light:	steel Gears , pinion gear

MW CNC Machined Aluminum Brass Stainless Steel Metal Gear Parts


Material: C45, 40Cr, 20CrMnTi, 42CrMo, stainless steel and so on

Machining way: It can be one whole body or welded

Teeth machinging way: Hobbing or gear shaping

Surface treatment: blackened or grey or zinc galvanized

Heat treatment: Teeth hardened or case hardened

Precision level: when you place the order, must let us know the precision level
We can make standard gear and special gear as per drawing or sample

The gear material can be carbon steel, stainless steel, aluminum, copper, brass and so on.

We can do heat treatment and surface treatment such as case harden, zinc plating , nick plating , chrome plating, powder coating, blacken and so on.

Our process includes tooling fabrication, stamping, deep drawing, punching, spinning, laser cutting, bending, seamless welding, machining and assembly.

Type A

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	26.1	24	18.9	6	20.3	8	7.1	12
	20	32.1	30	20	10	22	10	7.4	8.5
	25	39.6	37.5	23	10	28	10	11.09	12
	30	47.1	45	25	12	30	12	13.35	12
2	16	34.8	32	23.5	8	25.3	10	9.5	14
	20	42.8	40	25	12	32	10	10.78	12
	25	52.8	50	28	14	40	12	14.28	12.3
	30	62.8	60	30	16	50	12	17.78	12.8
2.5	16	43.5	40	28.1	10	30.3	12	11.9	15
	20	53.6	50	30.5	12	40	12	15.43	16
	25	66	62.5	33.5	15	50	15	19.48	16
	30	78.5	75	35.5	18	55	15	23.63	16
3	16	52.2	48	31.7	12	40.3	15	14.3	18
	20	64.2	60	35	18	45	15	16	13.6
	25	79.2	75	38	20	55	15	22	16
	30	94.2	90	40	22	60	20	28	17
3.5	16	60.9	56	36.4	14	45.3	15	16.6	20
	20	74.9	70	40.5	22	55	15	18.13	17
	25	92.4	87.5	43.5	26	65	20	23.97	18
	30	109.9	105	48	30	70	20	30.02	19
4	16	69.6	64	44.3	15	50.3	15	19	25
	20	85.6	80	43	25	60	18	20.74	18
	25	105.6	100	45	28	70	20	28.5	18
	30	125.6	120	48	32	80	25	35.67	16
4.5	16	78.3	72	46.3	18	55.3	18	21.7	25
	20	96.3	90	48	28	65	20	23.41	18
	25	118.8	112.5	50	32	75	20	31.76	18
	30	141.3	135	53	35	90	25	40.82	17
5	16	87	80	48.9	18	60.36	20	25.1	25
	20	107.1	100	50.5	30	70	20	26.86	18.5
	25	132.1	125	53.5	34	90	20	36.36	18
	30	157.1	150	56.5	38	110	30	45.97	18

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	26.7	24	19.5	8	21	10	16.33	11.3
1.5	32	49.3	48	20	8	32	12	7.45	10
2	16	35.6	32	23	10	26	10	22.41	12.2
2	32	65.8	64	25	10	40	12	10.21	10
2.5	16	44.4	40	27.5	12	34	12	28.38	14.4
2.5	32	82.2	80	26	12	50	15	14.1	10
3	16	53.4	48	28	15	40	15	33.64	11.6
3	32	98.7	96	30	15	60	15	15.31	10
3.5	16	62.3	56	33.5	18	48	15	38.83	14.4
3.5	32	115.1	112	31	18	70	20	17.77	10
4	16	71.1	64	36	20	50	20	44.81	13.4
4	32	131.6	128	32	20	80	20	20.42	10
4.5	16	80.1	72	39.5	22	60	20	51	15.4
4.5	32	148	144	36	22	90	25	23.21	10
5	16	88.9	80	50	25	60	20	56.06	21.1
5	32	164.5	160	38	25	100	25	25.52	10

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	26.9	24	22	12	20	10	24.44	9.8
1.5	48	72.9	72	20	12	50	15	7.27	10
2	16	35.8	32	28.5	15	26	12	33.26	12.7
2	48	97.3	96	23	15	60	15	9.9	10
2.5	16	44.7	40	32	18	32	12	42.41	13
2.5	48	121.6	120	26.6	18	70	20	13.23	10
3	16	53.7	48	32	18	40	15	54.25	12.1
3	48	145.9	144	29	18	80	20	16.2	10
3.5	16	62.6	56	38	22	48	15	62.29	15
3.5	48	170.2	168	31	22	90	20	18.48	10
4	16	71.6	64	41.5	25	55	20	71.23	15.2
4	48	194.5	192	33	25	100	22	21.2	10
4.5	16	80.6	72	53	28	60	20	80.27	23.4
4.5	48	218.6	216	49	28	100	25	23.93	18
5	16	89.5	80	60	35	60	20	85.61	22.5
5	48	243.1	240	50	35	150	28	25.45	20

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	26.9	24	25	12	18	10	36.02	12.2
1.5	64	96.7	96	22.5	12	70	15	8.53	10
2	16	35.9	32	24	15	25	12	49.07	8.2
2	64	129	128	25	15	80	20	11.79	10
2.5	16	44.9	40	30.5	18	30	15	61.99	11.2
2.5	64	161.2	160	29	18	90	20	13.77	10
3	16	53.8	48	34	22	40	15	74.05	11
3	64	193.5	192	30	22	100	20	16.41	10
3.5	16	62.8	56	45	25	48	15	87.13	19.1
3.5	64	225.7	224	50	25	100	25	19.32	22
4	16	71.7	64	50	30	50	20	98.21	18.5
4	64	257.9	256	50	30	120	28	21.72	20
4.5	16	80.7	72	53	32	55	20	112.08	19
4.5	64	290.1	288	53	32	130	30	24.83	23
5	16	89.7	80	58	35	60	20	125.06	20.6
5	64	322.4	320	58	35	150	30	27.65	25

Type B

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	27.1	24	20.3	8	20.3	8	10.7	11.8
1.5	24	37.2	36	24.9	8	28.3	8	7.1	16
2	16	36.2	32	25.2	10	25.3	8	14.8	13.8
2	24	49.7	48	27.2	10	32.3	8	9.8	16
2.5	16	45.2	40	30.8	13	32.3	12	18.2	16.4
2.5	24	62.1	60	34	13	45.3	16	12	20
3	16	54.3	48	32.4	14.5	40.3	12	22.6	16.4
3	24	74.5	72	36.2	14.5	55.3	16	14.8	20
3.5	16	63.3	56	40.4	18	45.3	16	25.6	20.4
3.5	24	86.9	84	44.2	18	55.3	20	16.8	25
4	16	72.4	64	46.8	18	50.3	16	31.2	25.4
4	24	99.3	96	45.5	18	60.3	20	20.5	25
4.5	16	81.4	72	47.6	20	60.3	20	35.4	25.1
4.5	24	111.7	108	57.8	20	80.3	25	23.2	35
5	16	90.5	80	54.1	24	60.3	25	37.9	25.4
5	24	124.1	120	61.1	24	80.3	30	24.9	35

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	15	26.1	22.5	21.1	9	19.3	8	13.9	11.9
1.5	30	45.9	45	25.2	9	32.3	8	6.8	16
2	15	34.8	30	26	11.5	25.3	8	19	14.1
2	30	61.2	60	29.8	11.5	40.3	14	9.2	18
2.5	15	43.5	37.5	31.8	15	32.3	12	23.2	16.2
2.5	30	76.5	75	33.7	15	45.3	16	11.3	20
3	15	52.2	45	37.3	17	40.3	12	28.7	19.9
3	30	91.8	90	42.1	17	55.3	16	13.9	25
3.5	15	60.9	52.5	46.1	20.5	45.3	16	32.9	24.7
3.5	30	107.1	105	45	20.5	60.3	20	16	25
4	15	69.6	60	48.6	22.5	50.3	20	38.4	24.6
4	30	122.3	120	57.3	22.5	80.3	25	18.7	35
4.5	15	78.3	67.5	51.4	26	60.3	20	42.6	24.7
4.5	30	137.6	135	60.3	26	80.3	30	20.7	35
5	15	87	75	57.6	30	60.3	25	46.4	25.3
5	30	152.9	150	62.5	30	80.3	30	22.5	35

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	27.9	24	24.2	11.5	20.3	8	18.8	12.3
1.5	40	60.7	60	27.8	11.5	40.3	14	7.2	18
2	16	37.2	32	29.6	15	25.3	8	25.4	13.7
2	40	80.9	80	32.4	15	45.3	16	9.6	20
2.5	16	46.4	40	38.4	19	32.3	12	31.6	18.5
2.5	40	101.1	100	39.8	19	55.3	16	12.2	25
3	16	55.7	48	41.9	21.5	40.3	16	39.1	19.6
3	40	121.4	120	47.9	21.5	60.3	20	15.1	30
3.5	16	65	56	49.1	22.6	45.3	20	47.9	25
3.5	40	141.6	140	54.6	22.6	80.3	25	18.4	35
4	16	74.3	64	52.5	26	55.3	20	54.5	25.3
4	40	161.8	160	57	26	80.3	30	21	35
4.5	16	83.6	72	56.3	30	60.3	25	60.7	24.6
4.5	40	182.1	180	59.7	30	80.3	30	23.3	35
5	16	92.9	80	65.4	32	60.3	25	68.6	30.1
5	40	202.3	200	65.7	32	90.3	30	26.3	40

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	15	26.5	22.5	22.6	10.5	19.3	8	23.4	11.7
1.5	45	68.1	67.5	29.6	10.5	45.3	14	7.4	20
2	15	35.4	30	28.9	14	25.3	8	31.1	14.2
2	45	90.8	90	32.1	14	45.3	16	9.9	20
2.5	15	44.1	37.5	34.6	18	32.3	12	38.4	15.9
2.5	45	113.4	112.5	39.7	18	60.3	20	12.3	25
3	15	53	45	41.3	21	40.3	16	46.7	19.7
3	45	136.1	135	47.2	21	60.3	25	14.8	30
3.5	15	61.9	52.5	49.6	23.5	45.3	20	55.4	25
3.5	45	158.8	157.5	54.4	23.5	80.3	25	17.6	35
4	15	70.7	60	54.3	27.5	50.3	20	62.7	25.4
4	45	181.5	180	57	27.5	80.3	30	20	35
4.5	15	79.5	67.5	55.2	28.5	55.3	25	72.8	24.8
4.5	45	204.2	202.5	63.9	28.5	90.3	30	23.1	40
5	15	88.4	75	65.3	33	60.3	25	79.7	30
5	45	226.9	225	66.7	33	90.3	30	25.3	40

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	16	28.1	24	24	12	20.3	8	30	11.5
1.5	56	84.5	84	34.8	12	45.3	14	8.2	25
2	16	37.5	32	30.9	16	25.3	8	40.1	14.1
2	56	112.6	12	37.1	16	55.3	16	10.9	25
2.5	16	46.8	40	38.9	20	32.3	14	50.1	17.9
2.5	56	140.8	140	44.4	20	60.3	20	13.6	30
3	16	56.2	48	49.9	24	40.3	16	60.1	24.9
3	56	169	168	52.7	24	80.3	25	16.3	35
3.5	16	65.6	56	52	25	45.3	20	73	25.5
3.5	56	197.1	196	55.1	25	80.3	25	19.9	35

Aluminum CNC Machining 0.04mm Gears And Pinions

M	Z	De	Dp	H	F	d	D	V	Lm
1.5	15	26.7	22.5	23	11	20.3	8	34	11.7
1.5	60	90.4	90	34	11	50.3	16	8	25
2	15	35.6	30	31	16	25.3	8	44	14.4
2	60	120.6	120	37.6	16	60.3	16	10.4	25
2.5	15	44.5	37.5	38.1	19	32.3	14	55.9	18.4
2.5	60	150.7	150	44.8	19	60.3	20	13.2	30
3	15	53.3	45	48.1	23	40.3	16	66.9	24.5
3	60	180.8	180	53.2	23	80.3	25	15.8	35
3.5	15	62.2	52.5	52.1	26	45.3	20	78.9	25.1
3.5	60	211	210	60.4	26	90.3	30	18.6	40
4	15	71.1	60	55.1	30	50.3	20	89.9	23
4	60	241.1	240	60.8	30	90.3	30	21.2	40
4.5	15	79.97	67.5	57	32	52.3	20	102.9	23
4.5	60	271.24	270	62	32	90.3	30	24.3	40
5	15	88.8	75	62	34	55.3	20	115.7	25
5	60	301.3	300	65	34	90.3	30	27	40

Aluminum CNC Machining 0.04mm Gears And Pinions

Hangzhou Ocean Industry Co., Ltd. is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.

Due to our sincerity in offering best service to our clients, understanding of your needs and overriding sense of responsibility toward filling ordering requirements, we have obtained the trust of buyers worldwide. Having accumulated precious experience in cooperating with foreign customers, our products are selling well in the American, European, South American and Asian markets. Our products are manufactured by modern computerized machinery and equipment. Meanwhile, our products are manufactured according to high quality standards, and complying with the international advanced standard criteria.

With many years' experience in this line, we will be trusted by our advantages in competitive price, one-time delivery, prompt response, on-hand engineering support and good after-sales services.

Additionally, all our production procedures are in compliance with ISO9001 standards. We also can design and make non-standard products to meet customers' special requirements. Quality and credit are the bases that make a corporation alive. We will provide best services and high quality products with all sincerity. If you need any information or samples, please contact us and you will have our soon reply.

FAQ:

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time and shipment?

1.Sample Lead-times: generally 10 workdays.

2.Production Lead-times: 20-40 workdays after getting your deposit.

Q3. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q4: What is your advantages?

1. Manufacturer,the most competitive price and good quality.

2. Perfect technical engineers give you the best support.

3. OEM is available.

4. Rich stock and quick delivery.

Q5. If you can’t find the product on our website,what do you next?

Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
