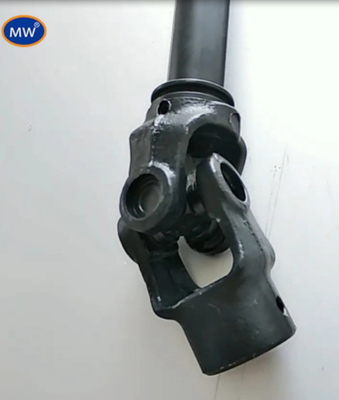

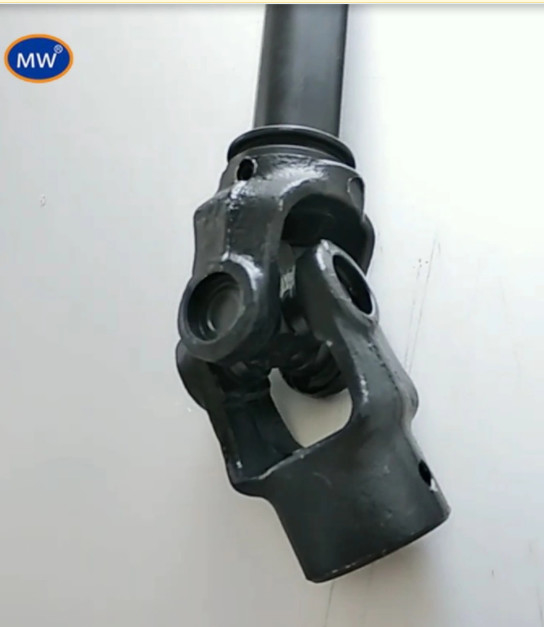

20 Teeth Splined End PTO Drive Shaft With Overload Protection

Product Description:

Our PTO Drive Shafts are made with high-quality materials and designed to deliver reliable power transfer between the power source and the driven equipment. With a shaft diameter of 50 mm and keyway size of 10 mm, our PTO Drive Shafts can handle the toughest loads and provide maximum torque of up to 500 Nm.

Our PTO Drive Shafts are ideal for a wide range of applications, including powering extruder shafts, high torque shafts, and high torque screwdrivers. Whether you're in the manufacturing, construction, or agricultural industry, our PTO Drive Shafts are perfect for any heavy-duty application.

Our PTO Drive Shafts are designed to be easy to install and maintain. They come equipped with all the necessary hardware and are designed to fit seamlessly into your existing equipment. Plus, our PTO Drive Shafts are built to last, ensuring that you get the most out of your investment.

All of our PTO Drive Shafts are manufactured to meet ISO 9001 standards, ensuring that they meet the highest quality and performance standards. With our PTO Drive Shafts, you can be confident that you're getting a reliable and durable solution that will keep your equipment running smoothly for years to come.

So if you're looking for a high-quality PTO Drive Shaft that can handle even the toughest loads, look no further than our PTO Drive Shafts. With their high torque capabilities and sturdy construction, our PTO Drive Shafts are the perfect solution for any heavy-duty application.

Features:

• Product Name: PTO Drive Shafts
• Material: Steel
• Maximum Torque: 500 Nm
• Flange Thickness: 20 Mm
• Keyway Size: 10 Mm
• Splined End Diameter: 60 Mm
• Hollow Shaft Motor
• CV Axle Shaft
• Hollow Shaft Motor

Technical Parameters:

This PTO Drive Shaft has a high torque capacity and is made of durable steel material. It is suitable for use with Gears and Shafts, High Torque Shaft Screwdriver, and Drive Shaft Welding Machine. Additionally, it is ISO 9001 certified, ensuring high-quality standards.

Type	U-joint		Joint simple				Splined yoke		Tube yo ke				Tube
			Inner		outer				Inner		outer		Inner		outer
	1		2		3		4		5		6		7		8
S230	2000723 30.18×106.3		40023001		40023002		101G723138		102S23251		103S23261		301S510		301S614
S240	2000824 34.9×106.3		40024001		40024002		101G824138		102S24251		103S24261		301S510		301S614
S2500 (036)	2000036 36×89		40036001		40036002		101G036138		102S036251		103S036261		301S510		301S614
S2600 (026)	2000026 42×104		40026001		40026002		101G026138		102S026261		103S026271		301S614		302S715
Operating torque
Type		540 tr./min						1000 tr./min						Nm
		kw		pk		Nm		kw		pk		Nm
		CV						CV
S230		36		56		780		75		92		550		3400
S240		45		77		890		82		110		780		4200
S2500		66		90		1175		102		139		975		6000
S2600		79		107		1400		122		166		1165		7800

Applications:

• Hollow Shaft Motor: These drive shafts can be used to connect a hollow shaft motor to a machine or an equipment. The keyway size of 10mm and the splined end diameter of 60mm make it easy to connect with different types of machines.
• Automotive Drive Shaft: PTO Drive Shafts can also be used as automotive drive shafts in vehicles such as trucks, buses, and other heavy-duty vehicles. The overload protection safety feature ensures that the drive shafts can handle the high torque and power required to run these vehicles.
• Extruder Shaft: The PTO Drive Shafts can also be used in extruder machines to transmit power from the motor to the extruder screw. The maximum speed of 1000 rpm ensures that the drive shafts can handle the high-speed rotation required in extruder machines.

Overall, PTO Drive Shafts from MW are versatile and can be used in various applications. Whether it is connecting a hollow shaft motor, automotive drive shaft or an extruder shaft, these drive shafts are designed to handle high torque and power. With the overload protection safety feature, you can be assured of a safe and reliable operation. Get your PTO Drive Shafts today and experience the durability and reliability that MW is known for.

FAQ:

1.What is a PTO drive shaft?

A PTO (Power Take-Off) drive shaft is a mechanical component that transfers power from a tractor or other source of power to an implement such as a mower, tiller, or baler.

The brand name of our PTO drive shafts is MW.

Our PTO drive shafts are made in China.

We do not offer specific models of PTO drive shafts. Instead, we offer a range of sizes and specifications to fit various applications.

The load capacity of our PTO drive shafts varies depending on the size and specifications. Please refer to our product catalog or contact us for more information.
