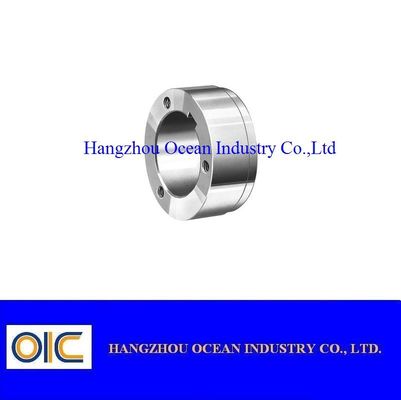

Finished Bore Taper Lock Bush and Hub 1008 Featuring Black Oxide Finish for Secure Industrial Shaft Connections

Product Description:

The Taper Lock Bush and Hub is a precision-engineered mechanical component designed to provide a secure and reliable coupling solution for various industrial applications. This product is specifically crafted to ensure optimal performance in high-speed environments, boasting a maximum speed capability of up to 4,500 RPM. Its robust design and high-quality materials make it an ideal choice for applications requiring dependable torque transmission and secure shaft connections.

One of the standout features of the Taper Lock Bush and Hub is its finished bore type, which guarantees a precise and smooth fit onto the shaft. The finished bore eliminates the need for additional machining or finishing, thereby reducing installation time and costs. This product accommodates a bore range starting from 1/2 inch, making it versatile enough to fit a variety of shaft sizes commonly found in industrial machinery.

The assembly includes two screws, ensuring a firm and stable connection between the bush, hub, and shaft. The number of screws has been optimized to provide sufficient clamping force while maintaining ease of installation and maintenance. This design consideration enhances the overall reliability and durability of the coupling, even under demanding operational conditions.

In addition to the mechanical attributes, the Taper Lock Bush and Hub features a straight keyway type, which is essential for transmitting torque effectively between the shaft and the coupling. The straight keyway design allows for precise alignment and minimizes the risk of slippage, contributing to the smooth operation of the machinery it is integrated with. This feature is especially important in applications where consistent rotational force and positional accuracy are critical.

While the Taper Lock Bush and Hub itself is a mechanical component, it is often used in conjunction with advanced locking mechanisms such as Electromagnetic Locks and Electric Magnetic Locks. These locking technologies provide enhanced security and control in automated systems, ensuring that components remain fixed in place during operation. Incorporating the Taper Lock Bush and Hub with electromagnetic locking solutions can significantly improve system reliability and safety, particularly in applications involving Bar Lock Couplers.

Bar Lock Couplers are another related technology that benefits from the precise and secure fit provided by the Taper Lock Bush and Hub. These couplers are designed to connect shafts and other rotating parts securely, and the integration with a taper lock system ensures that the connection can withstand high torque and speed without loosening or wear. This makes the Taper Lock Bush and Hub an essential component in systems where Bar Lock Couplers are employed, enhancing the overall performance and longevity of the machinery.

Manufactured to meet stringent industry standards, the Taper Lock Bush and Hub is suitable for a wide range of applications, including conveyor systems, pumps, compressors, and heavy machinery. Its ability to operate efficiently at high speeds, combined with its durable construction and ease of installation, makes it a preferred choice among engineers and maintenance professionals.

In conclusion, the Taper Lock Bush and Hub offers a comprehensive solution for shaft coupling needs, providing high-speed capability up to 4,500 RPM, a finished bore type for precision fitting, a bore range starting at 1/2 inch, two screws for secure attachment, and a straight keyway for effective torque transmission. Its compatibility with advanced locking mechanisms like Electromagnetic Lock and Electric Magnetic Lock, as well as its synergy with Bar Lock Couplers, positions it as a vital component in modern industrial machinery. Choosing the Taper Lock Bush and Hub ensures enhanced performance, reliability, and safety in your mechanical systems.

Features:

• Product Name: Taper Lock Bush and Hub
• Bore Type: Finished Bore
• Number Of Screws: 2
• Screw Type: Socket Head
• Taper Ratio: 1:8
• Weight: 5.3 Lbs
• Ideal for use with Bar Lock Couplers
• Designed as Heavy Equipment Bushings
• Suitable for Excavator Pin Bush applications

Technical Parameters:

Applications:

The MW Taper Lock Bush and Hub, manufactured in China, is a high-quality power transmission component designed to provide reliable and efficient performance in various industrial applications. With a taper ratio of 1:8, this product ensures a secure and precise fit between shafts and hubs, effectively reducing slippage and enhancing torque transmission. Weighing 5.3 lbs and capable of handling a maximum torque of 1,150 ft-lbs, it is ideal for demanding environments that require robust mechanical connections.

This Taper Lock Bush and Hub is widely used in power transmission systems where precise alignment and strong coupling are crucial. It is especially suitable for applications involving guide pins and bushings, where accurate positioning and smooth movement are essential. The product’s socket head screw type allows for easy installation and maintenance, making it a preferred choice for engineers and maintenance professionals alike.

In heavy equipment bushings, the MW Taper Lock Bush and Hub offers excellent durability and strength, ensuring the longevity of machinery components under high stress and load conditions. Its sturdy design helps to minimize wear and tear, reducing downtime and maintenance costs for heavy machinery such as construction vehicles, agricultural equipment, and industrial machines.

Additionally, the Taper Lock Bush and Hub is an excellent solution for control arm bushing applications in automotive and mechanical systems. It provides a reliable connection that can withstand significant forces while maintaining alignment and stability. This makes it invaluable in suspension systems and other mechanical linkages where control and flexibility are necessary.

Overall, the MW Taper Lock Bush and Hub is a versatile and dependable component that supports a wide range of industrial and mechanical applications. Its superior design and robust specifications ensure optimal performance in power transmission, heavy equipment, and control arm bushing scenarios, making it an essential part for engineers and technicians aiming for efficiency and durability in their mechanical assemblies.

Customization:

MW offers customized Product Customization Services for the Taper Lock Bush and Hub, designed to meet your specific needs. Manufactured in CHINA, our bushings feature a finished bore with a bore range starting from 1/2 inch, ensuring precise fit and reliable performance. The straight keyway type provides secure torque transmission, while the assembly is secured with 2 screws for enhanced stability. Our Taper Lock Bush and Hub can operate at a maximum speed of 4,500 RPM, making them suitable for various industrial applications.

Whether you need a Bush Hammer for surface texturing, a Bushing Assembly for mechanical support, or integration with Automotive Tape in specialized equipment, MW's customization services ensure that each product meets your exact specifications. Trust MW to deliver high-quality, durable, and efficient taper lock bushings tailored to your operational requirements.

Support and Services:

Our Taper Lock Bush and Hub products come with comprehensive technical support and services to ensure optimal performance and ease of installation. We provide detailed product documentation, including installation manuals, maintenance guidelines, and troubleshooting tips to assist you at every step.

Our expert technical team is available to offer guidance on selecting the right Taper Lock Bush and Hub for your specific application, ensuring compatibility and maximum efficiency. We also provide assistance in calculating the correct sizes and fits to meet your operational requirements.

For maintenance and repair, we offer support services that include inspection recommendations, replacement procedures, and advice on prolonging the lifespan of your Taper Lock components. Additionally, we supply genuine replacement parts to maintain the integrity and performance of your equipment.

We are committed to delivering prompt and reliable after-sales service, helping you minimize downtime and maximize productivity. Whether you need technical consultations, on-site support, or customized solutions, our team is ready to assist you in achieving the best results with your Taper Lock Bush and Hub products.

Packing and Shipping:

Product Packaging: The Taper Lock Bush and Hub are carefully packaged to ensure protection during transit. Each component is individually wrapped with protective material to prevent surface damage and corrosion. The bush and hub are then securely placed in a sturdy cardboard box with appropriate padding to minimize movement and impact. Packaging is labeled clearly with product details, handling instructions, and safety information to facilitate easy identification and safe handling.

Shipping: The Taper Lock Bush and Hub are shipped via reliable carriers to ensure timely and safe delivery. Depending on the destination, shipping options include standard ground, expedited, or freight services. All shipments are accompanied by detailed documentation, including packing lists and certificates of compliance where applicable. Special care is taken to comply with international shipping regulations for hazardous materials if any lubricants or coatings are applied. Tracking information is provided to customers for real-time updates on their order status.

FAQ:

Q1: What is a Taper Lock Bush and Hub?

A1: A Taper Lock Bush and Hub is a mechanical component used to securely mount pulleys, sprockets, and other parts onto shafts. It uses a tapered design to lock the hub onto the shaft, providing a strong and precise fit.

Q2: What brand manufactures this Taper Lock Bush and Hub?

A2: This Taper Lock Bush and Hub is manufactured by the brand MW.

Q3: Where is this Taper Lock Bush and Hub made?

A3: The Taper Lock Bush and Hub is made in China.

Q4: Is there a model number associated with this Taper Lock Bush and Hub?

A4: No, this product does not have a specific model number.

Q5: What are the typical applications for the MW Taper Lock Bush and Hub?

A5: The MW Taper Lock Bush and Hub is commonly used in industrial machinery for mounting pulleys, sprockets, and gears onto shafts, ensuring reliable torque transmission and ease of assembly and disassembly.
