25 Mm Shaft Diameter Flat Face Hydraulic Coupling 0.5 Kg Engineered for Optimal Hydraulic Flow and Minimal Pressure Drop

Product Description:

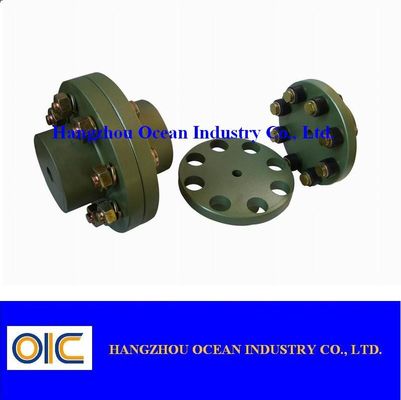

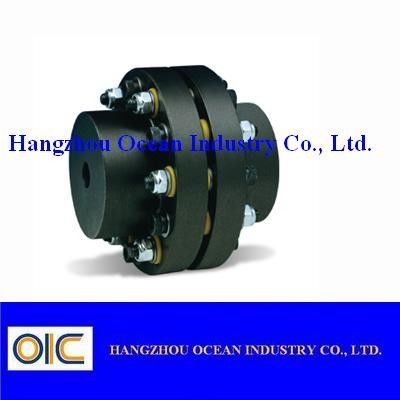

Rigid couplings are essential components in mechanical systems where precise shaft alignment and secure connection are critical. Our Rigid Couplings are designed with a bolted connection type, ensuring a robust and reliable attachment between shafts. This bolted connection provides ease of installation and maintenance while maintaining the highest level of mechanical integrity. The type of coupling featured is flanged, which offers a solid and stable interface, ideal for applications that demand minimal shaft movement and vibration.

One of the standout features of our Rigid Couplings is their capability to accommodate a shaft misalignment of up to 0.2 degrees. This slight allowance helps in reducing the stress on the connected shafts and minimizes wear and tear over time, thereby extending the lifespan of the machinery. Despite being designed for rigidity, this small tolerance plays a crucial role in maintaining operational efficiency in dynamic environments.

The surface treatment of our couplings is zinc plated, providing excellent resistance against corrosion and environmental degradation. This zinc plating not only enhances the durability of the coupling but also maintains its aesthetic appeal over prolonged usage. The protective coating ensures that the coupling performs reliably even in harsh conditions, making it a perfect choice for outdoor and industrial applications.

Specifically tailored for shafts with a diameter of 25 mm, these Rigid Couplings are ideal for a wide range of machinery and equipment. The precise fit for this shaft size guarantees optimal torque transmission and alignment, which is essential for maintaining the performance and safety of mechanical systems. Whether you are dealing with agricultural machinery, industrial equipment, or other mechanical assemblies, these couplings provide the dependable connection you need.

In addition to their primary function, our Rigid Couplings stand out in comparison to other coupling types such as Agricultural Quick Couplings, Flexible Jaw Couplings, and Flexible Diaphragm Couplings. While Agricultural Quick Couplings are designed for rapid connection and disconnection in farming equipment, and Flexible Jaw Couplings provide a degree of flexibility to accommodate misalignment and shock absorption, our Rigid Couplings focus on absolute shaft alignment and maximum torque transfer without any flexibility. Similarly, Flexible Diaphragm Couplings allow for some axial, angular, and parallel misalignment, which is beneficial in certain applications but not suitable where rigidity is paramount.

Choosing the correct coupling type depends on the specific needs of your application. If your priority is to maintain a precise and stable connection with minimal misalignment and highest torque transmission, our bolted flanged Rigid Couplings with zinc plating and a 25 mm shaft diameter offer an unmatched solution. They ensure mechanical stability and longevity, outperforming flexible coupling types in applications where rigidity is non-negotiable.

In summary, our Rigid Couplings combine the strength of a bolted flanged connection with a thoughtfully designed tolerance for minimal shaft misalignment. The zinc plating extends their operational life by protecting against corrosion, while the 25 mm shaft diameter specification ensures they fit perfectly within a wide range of mechanical systems. Whether replacing or upgrading components in agricultural machinery, industrial drives, or other equipment, these couplings provide a dependable, high-performance solution. By understanding the differences and advantages compared to Agricultural Quick Couplings, Flexible Jaw Couplings, and Flexible Diaphragm Couplings, users can make an informed choice to optimize their machinery's functionality and lifespan.

Features:

• Product Name: Rigid Couplings
• Type: Flanged
• Size: 1 Inch
• Connection Type: Bolted
• Shaft Misalignment: 0.2 Degrees
• Bore Diameter: 25 Mm
• Compatible with Flex Rigid PCB systems
• Part of the GR Coupling series
• Suitable for use with Agricultural Quick Couplings

Technical Parameters:

Applications:

The MW Flanged Rigid Coupling, originating from China, is a robust and reliable solution designed specifically for industrial machinery applications. With a keyway size of 6 mm and an impressive torque capacity of 1000 Nm, this coupling is engineered to provide secure and efficient power transmission in demanding environments. Its bolted connection type ensures a strong and stable joint between shafts, minimizing the risk of misalignment and mechanical failure.

One of the primary application occasions for the MW Flange Rigid Coupling is in heavy-duty industrial machinery where precision and durability are paramount. The rigid coupling’s design makes it ideal for use in systems where shaft alignment is critical and where torsional rigidity is required to maintain operational integrity. This makes it a preferred choice in manufacturing plants, conveyor systems, and automated assembly lines where consistent performance is essential.

Additionally, MW’s rigid coupling is well-suited for integration within a concentric casing system, which is commonly used in various mechanical assemblies to ensure optimal alignment and load distribution. The flange rigid coupling’s bolted connection method allows for easy installation and maintenance, making it an efficient choice for engineers and technicians working in complex industrial setups.

Moreover, the MW rigid coupling finds important applications in agricultural machinery, specifically as part of agricultural quick couplings. These quick couplings require reliable and sturdy connections to handle the high torque demands of agricultural equipment such as tractors, harvesters, and irrigation systems. The MW coupling’s high torque capacity of 1000 Nm ensures it can withstand the rigorous operating conditions typical in agricultural settings.

In summary, the MW Flanged Rigid Coupling is a versatile and high-performance component suitable for a wide range of industrial machinery applications. Its key features, including the 6 mm keyway size, bolted flange connection, and substantial torque capacity, make it an excellent choice for industries requiring dependable coupling solutions, particularly within concentric casing systems and agricultural quick couplings.

Customization:

MW offers customized product solutions for our Rigid Couplings, designed to meet your specific requirements. Although our model number is not specified, each coupling is precision-engineered in CHINA to ensure quality and durability. With a bore diameter of 25 mm and shaft diameter of 25 mm, our rigid couplings provide a perfect fit for your machinery.

Featuring a bolted connection type, these couplings ensure secure and reliable assembly. The zinc plated surface treatment offers excellent corrosion resistance, extending the product's service life in various environments. Additionally, the keyway size of 6 mm enhances torque transmission and alignment accuracy.

Our customization services also incorporate advanced designs inspired by Flexible Jaw Coupling technology, ensuring flexibility where needed while maintaining rigidity. We cater to applications including Agricultural Quick Couplings, providing efficient and rapid connection solutions for agricultural machinery. Furthermore, the concentric casing system is integrated to guarantee optimal alignment and smooth operation.

Choose MW for your rigid coupling needs and benefit from tailored solutions that enhance performance and longevity in your mechanical systems.

Support and Services:

Our Rigid Couplings are designed for maximum reliability and performance in a variety of industrial applications. For technical support, please ensure you have the product model number and specifications ready to facilitate prompt assistance. Our support team can provide guidance on installation, maintenance, and troubleshooting to help you achieve optimal operation.

We offer comprehensive services including product selection assistance, customization options, and repair services. Detailed installation manuals and technical datasheets are available to ensure proper usage and to extend the life of your rigid couplings.

For maintenance, regular inspection of the coupling for signs of wear or misalignment is recommended. Proper lubrication and alignment checks will help prevent premature failure. Should any issues arise, our technical experts are available to assist with diagnostics and solutions tailored to your specific application.

To maximize the performance of your rigid couplings, we also provide training sessions and on-site support services. These programs are designed to equip your team with the knowledge necessary for effective handling and maintenance of the product.

Trust our dedicated support and service team to help you maintain the integrity and efficiency of your mechanical systems with our reliable rigid couplings.

Packing and Shipping:

Our Rigid Couplings are carefully packaged to ensure maximum protection during transit. Each coupling is individually wrapped in protective material and placed in a sturdy cardboard box to prevent damage from impacts or moisture.

For bulk orders, the couplings are securely arranged in larger cartons with adequate padding to avoid movement and abrasion. All packages are clearly labeled with product details and handling instructions.

We offer reliable shipping options to deliver your order promptly and safely to your specified location. Tracking information is provided for all shipments to keep you informed throughout the delivery process.

FAQ:

Q1: What brand manufactures the Rigid Couplings?

A1: The Rigid Couplings are manufactured by the brand MW.

Q2: What is the model number of the MW Rigid Couplings?

A2: The MW Rigid Couplings do not have a specific model number.

Q3: Where are the MW Rigid Couplings made?

A3: The MW Rigid Couplings are made in China.

Q4: What materials are used in the construction of MW Rigid Couplings?

A4: MW Rigid Couplings are typically made from high-quality metals to ensure durability and strength.

Q5: What applications are suitable for MW Rigid Couplings?

A5: MW Rigid Couplings are suitable for applications requiring precise shaft alignment and secure connection between rotating shafts.
