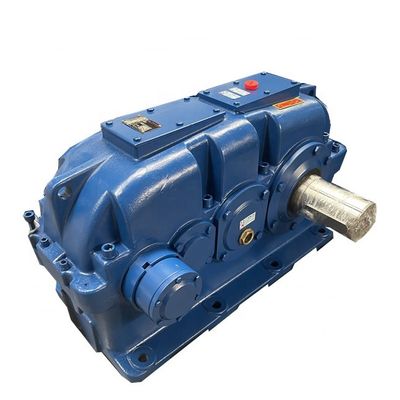

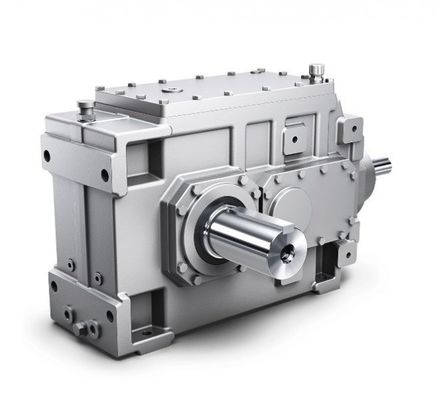

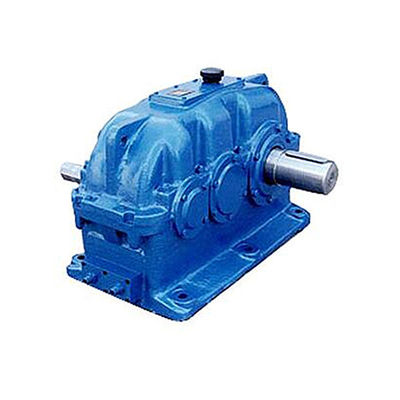

Ratio 5 1 Helical Worm Gear Reducer Providing Output Torque 500 Nm Engineered for Smooth Operation and Long Service Life

Product Description:

The Gearbox reducer is a high-performance mechanical device designed to efficiently reduce the input speed and increase output torque, making it an essential component in various industrial applications. Featuring a planetary gearing arrangement, this reducer offers superior load distribution, compact design, and enhanced durability. The planetary system ensures smooth and reliable operation, allowing the gearbox to handle demanding tasks with ease and precision.

Designed to operate at an input speed of 1000 RPM, this Gearbox reducer provides versatile ratio options, including 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, and 5:1. These ratios enable users to select the optimal speed reduction based on specific application requirements, ensuring maximum efficiency and performance. Whether the need is for a direct drive or a significant reduction in speed, this gearbox reducer caters to a wide range of industrial machinery and equipment.

The construction of the Gearbox reducer emphasizes strength and longevity, utilizing high-quality cast iron materials for the housing. Cast iron offers excellent resistance to wear, corrosion, and mechanical stress, which guarantees the gearbox’s reliability in harsh industrial environments. This robust material choice also contributes to the reducer’s ability to withstand heavy loads and deliver consistent output torque without compromising structural integrity.

With an impressive output torque rating of 500 Nm, the Gearbox reducer is capable of transmitting substantial power to connected equipment. This makes it suitable for applications requiring high torque at reduced speeds, such as conveyors, mixers, crushers, and various heavy-duty machinery. The combination of planetary gearing and cast iron construction ensures that the output torque is delivered smoothly and efficiently, minimizing energy loss and maximizing operational uptime.

In comparison to other types of reducers like the Aluminum Worm Gear Reducer, Helical Bevel Gear Reducer, and Carbon Steel Reducer, the planetary Gearbox reducer stands out for its compact size and high torque density. While aluminum worm gear reducers are valued for their lightweight design and corrosion resistance, they typically offer lower torque capacity and efficiency. Helical bevel gear reducers provide excellent angular torque transmission but can be more complex and costly to maintain. Carbon steel reducers, known for their strength and toughness, are ideal for heavy-duty applications but may lack the precision and smooth operation offered by planetary gearing systems.

The Gearbox reducer’s planetary design also contributes to quieter operation and reduced vibration compared to worm or helical bevel gear reducers. This is particularly beneficial in environments where noise reduction is crucial. Furthermore, the modular nature of the planetary system allows for easier customization and maintenance, reducing downtime and operational costs over the product’s lifecycle.

Overall, the Gearbox reducer is an excellent choice for industries seeking a reliable, efficient, and durable solution for speed reduction and torque multiplication. Its versatile ratio options, robust cast iron construction, and planetary gearing arrangement provide a balance of performance and longevity that meets the demands of modern mechanical systems. Whether replacing or upgrading from Aluminum Worm Gear Reducer, Helical Bevel Gear Reducer, or Carbon Steel Reducer units, this planetary gearbox reducer offers enhanced functionality and value for a wide array of applications.

Features:

• Product Name: Gearbox reducer
• Input Speed: 1000 RPM
• Mounting Position: Horizontal
• Type: Planetary
• Output Speed: 200 RPM
• Ratio Options: 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1
• Includes Cylindrical Speed Reducer for efficient performance
• Features Helical Bevel Gear Reducer for smooth and reliable operation
• Comprises high-quality Gearbox Transmission Parts for durability

Technical Parameters:

Applications:

The MW Gearbox Reducer, proudly made in China, is a versatile and reliable solution designed to meet a wide range of industrial and mechanical needs. Featuring a robust cast iron construction, this gearbox reducer ensures durability and long-lasting performance even in demanding environments. With a ratio of 5:1, an output speed of 200 RPM, and an impressive output torque of 500 Nm, it is engineered to provide efficient power transmission and precise speed control. Weighing 10 kg, the MW Gearbox Reducer strikes a perfect balance between strength and manageability.

One of the primary application occasions for the MW Gearbox Reducer is in electric motor gear reducer systems. It is commonly used to optimize the torque and speed of electric motors in various machinery, enhancing overall operational efficiency. The gearbox reducer’s ability to deliver consistent output torque makes it ideal for applications where controlled speed and high torque are critical, such as conveyor systems, automated production lines, and packaging equipment.

In addition, the MW Gearbox Reducer is available in multiple configurations including bevel gear reducer and helical gear reducer types. The bevel gear reducer variant is particularly suited for applications requiring a change in the axis of rotation, such as in automotive differentials, material handling equipment, and heavy-duty machinery where angular power transmission is necessary. Meanwhile, the helical gear reducer is often utilized in scenarios demanding smooth and quiet operation, such as in printing presses, textile machinery, and food processing equipment.

These gear reducers are also widely employed in construction and agricultural machinery due to their robust design and ability to withstand harsh working conditions. Their cast iron material provides excellent resistance to wear, corrosion, and mechanical stress, making them reliable in outdoor and heavy-load environments. For example, they are used in cranes, mixers, and irrigation systems where consistent performance and durability are essential.

Overall, the MW Gearbox Reducer is an essential component in numerous industrial scenarios where efficiency, reliability, and precision are required. Whether integrated as an electric motor gear reducer, a bevel gear reducer for angular power transfer, or a helical gear reducer for smooth operation, it delivers exceptional performance. Its combination of a 5:1 ratio, 200 RPM output speed, and 500 Nm torque output makes it a versatile choice for various mechanical power transmission applications, fulfilling the needs of modern industry with confidence and quality.

Customization:

Our MW Gearbox Reducer offers customizable product options to meet your specific needs. This planetary type Cycloidal Gear Reducer, originating from China, is designed with a ratio of 5:1 to provide optimal performance. It operates efficiently within a temperature range of 0-50°C and utilizes grease lubrication to ensure durability and smooth operation. With an input power capacity of 1 KW, this High Torque Gearbox is ideal for various industrial applications. Whether you require an Electric Motor Gear Reducer for enhanced torque or a reliable gearbox solution, our MW Gearbox Reducer customization services can tailor the product to your exact specifications.

Support and Services:

Our Gearbox Reducer product is designed to provide reliable and efficient torque transmission in various industrial applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services tailored to your needs.

Technical Support:

Our team of experienced engineers is available to assist with product selection, application analysis, installation guidance, and troubleshooting. We provide detailed technical documentation, including installation manuals, maintenance guides, and performance specifications to help you make the most of your gearbox reducer.

Maintenance Services:

Regular maintenance is crucial to extend the life of your gearbox reducer. We offer maintenance services including inspection, lubrication, parts replacement, and performance testing. Our experts can help develop a customized maintenance schedule based on your operational requirements.

Repair and Overhaul:

In the event of a malfunction or wear, our repair services ensure that your gearbox reducer is restored to peak condition. We use genuine replacement parts and adhere to strict quality standards during repairs and overhauls.

Customization and Upgrades:

We understand that different applications may require specific modifications. Our team can provide customization options and upgrade solutions to enhance the functionality and efficiency of your gearbox reducer.

Training and Consultation:

We offer training sessions and consultation services to help your staff understand the proper use, maintenance, and troubleshooting of the gearbox reducer, ensuring safe and effective operation.

By choosing our Gearbox Reducer and associated support services, you gain a reliable partner committed to maximizing your equipment's performance and minimizing downtime.

Packing and Shipping:

Our gearbox reducers are carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped with protective materials to prevent damage from moisture, dust, and impact. The gearbox is then placed in a sturdy, custom-designed box that provides additional cushioning and support.

For shipping, we use robust outer cartons reinforced with corner protectors and internal padding to safeguard the product against shocks and vibrations. All packages are clearly labeled with handling instructions and product details to facilitate safe and efficient delivery.

We offer various shipping options tailored to your needs, including standard, expedited, and freight services. Our logistics partners are selected based on reliability and timely delivery to ensure your gearbox reducer arrives in perfect condition and on schedule.

Upon receipt, please inspect the packaging and product for any signs of damage. In case of any issues, contact our customer service immediately for prompt assistance.

FAQ:

Q1: What is the brand name of the gearbox reducer?

A1: The gearbox reducer is manufactured under the brand name MW.

Q2: Where is the MW gearbox reducer made?

A2: The MW gearbox reducer is made in China.

Q3: Does the MW gearbox reducer have a specific model number?

A3: The MW gearbox reducer does not have a specific model number; it is identified by its brand and specifications.

Q4: What applications is the MW gearbox reducer suitable for?

A4: The MW gearbox reducer is suitable for various industrial applications requiring speed reduction and torque increase, such as conveyors, mixers, and machinery.

Q5: What type of maintenance does the MW gearbox reducer require?

A5: Regular maintenance for the MW gearbox reducer includes checking lubricant levels, inspecting for wear and tear, and ensuring proper alignment to ensure optimal performance.
