Flange Diameter 100 Mm High Torque Shaft Screwdriver Incorporating Overload Protection Providing Durable and Operation for Industrial

Product Description:

The PTO Drive Shafts are essential components designed to efficiently transfer power from tractors or other power sources to various agricultural and industrial machinery. Engineered with precision and durability in mind, these shafts are built to withstand demanding operational conditions, providing reliable performance and longevity. At the heart of the PTO Drive Shaft is the PTO Shaft Tube, which serves as the primary power source conduit, ensuring smooth transmission of mechanical energy.

One of the standout features of these PTO Drive Shafts is the splined end size, meticulously crafted with 20 teeth. This specification ensures a secure and precise fit with corresponding machinery components, minimizing slippage and optimizing power transfer. The 20-tooth spline configuration is a standard that guarantees compatibility with a wide range of equipment, making these shafts highly versatile and adaptable to various applications.

Designed to handle substantial mechanical loads, the PTO Drive Shafts boast a maximum torque capacity of 500 Nm. This high torque rating makes them suitable for heavy-duty tasks, enabling machinery to operate efficiently even under strenuous conditions. Wh it’s powering a rotary tiller, mower, or other agricultural implements, these shafts deliver consistent torque without compromising structural integrity.

The flange diameter of the PTO Drive Shafts measures 100 mm, providing a robust connection interface for mounting and securing the shaft to other components. This dimension is critical for ensuring stability and alignment during operation, reducing vibrations and wear. The precise flange diameter also facilitates easy installation and maintenance, contributing to reduced downtime and improved productivity.

In addition to the flange diameter, the keyway size is another vital attribute, measuring 10 mm. The keyway plays a crucial role in transmitting torque between the shaft and the mating part by accommodating a key that locks the components tog. A 10 mm keyway size strikes the perfect balance between strength and flexibility, ensuring the shaft can handle the torque demands while allowing for some degree of movement to prevent damage under overload conditions.

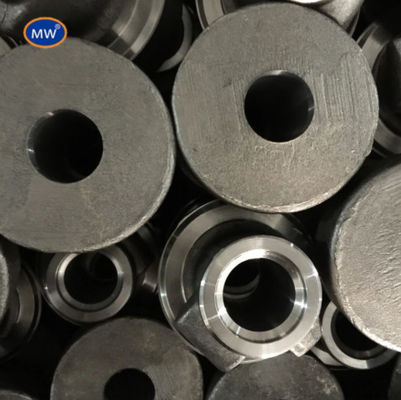

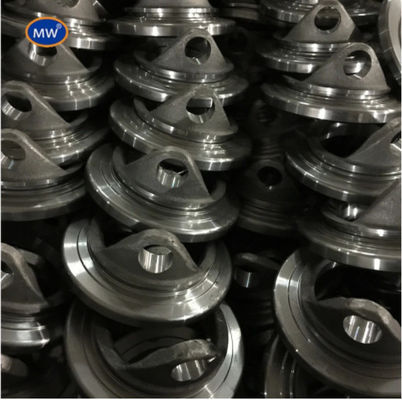

These PTO Drive Shafts are manufactured using high-quality forged steel shafts, which are known for their exceptional strength and resistance to fatigue. Forged steel shafts undergo a rigorous forging process that enhances their mechanical properties, resulting in superior toughness and durability compared to cast or machined counterparts. This forging process also improves the shaft’s grain structure, making it less prone to cracks and failures during intensive use.

Moreover, the shafts incorporate elements inspired by cam shafts design principles, which contribute to their efficient rotational motion and torque transmission. The cam shafts influence the precise movement and timing mechanisms within various machinery, and integrating similar design aspects into PTO Drive Shafts ensures smooth and reliable operation. This synergy of design and material quality culminates in a product that excels in performance and longevity.

The forging shaft construction of these PTO Drive Shafts enhances their resilience against mechanical stresses encountered during operation. Forging techniques ensure the metal structure is compact and free from internal defects, which is critical for components subjected to high torque loads and rotational speeds. This manufacturing approach guarantees that the shafts maintain their structural integrity over extended periods, reducing the need for frequent replacements.

In summary, the PTO Drive Shafts with a PTO Shaft Tube power source, 20 teeth splined end size, 500 Nm maximum torque, 100 mm flange diameter, and 10 mm keyway size represent a robust, reliable, and versatile solution for power transmission in agricultural and industrial machinery. Their construction from forged steel shafts and incorporation of cam shafts design principles ensure exceptional performance, durability, and compatibility. Wh used in farming equipment, construction machinery, or other applications requiring efficient torque transfer, these PTO Drive Shafts deliver superior results, making them an indispensable component in modern mechanical systems.

Features:

• Product Name: PTO Drive Shafts
• Certification: ISO 9001 certified for quality assurance
• Length: 1.5 Meters for versatile applications
• Power Source: Pto Shaft Tube ensuring efficient power transmission

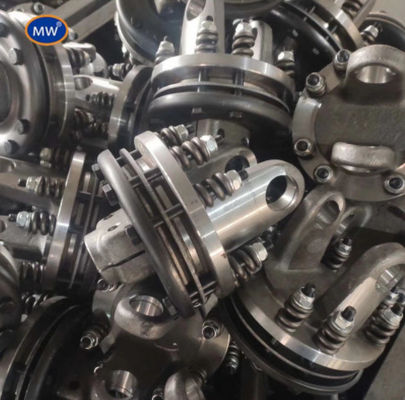

• Safety Features: Equipped with Overload Protection for enhanced safety
• Splined End Size: 20 Teeth for precise fitting
• Includes Drive Shaft Center Bearing for stable operation
• Incorporates Drive Shaft Pin for secure connection
• Compatible with various Gear Shafts for diverse machinery

Technical Parameters:

Applications:

The MW PTO Drive Shafts are designed to deliver exceptional performance and reliability across a wide range of agricultural and industrial applications. Manufactured in China under strict ISO 9001 quality certification, these drive shafts ensure durability and precision in operation. With a splined end size of 20 teeth and a splined end length of 50 mm, the MW PTO Drive Shafts provide a secure and efficient connection to various power transmission systems.

One of the primary application occasions for MW PTO Drive Shafts is in agricultural machinery, where they serve as essential components in power take-off systems. These shafts enable the transfer of power from a tractor’s Hollow Shaft Motor to various implements, such as mowers, balers, and tillers, ensuring smooth and consistent operation. Their robust construction allows them to handle a maximum torque of 500 Nm, making them suitable for heavy-duty tasks that require reliable torque transmission.

In addition to agricultural use, MW PTO Drive Shafts are widely employed in industrial settings where precise and efficient power transmission is critical. They are commonly used as Axle Drive Shafts in machinery that requires rotational motion transfer between components. Their keyway size of 10 mm facilitates easy assembly and secure fitting, minimizing the risk of slippage and enhancing operational safety.

The versatility of MW PTO Drive Shafts extends to their role as crucial Drive Shaft Components in various mechanical systems. Wh used in conveyor systems, construction equipment, or specialized machinery, these shafts provide dependable performance and adaptability to different torque and speed requirements. Their hollow design reduces weight while maintaining strength, contributing to improved efficiency and reduced wear on connected components.

Overall, MW PTO Drive Shafts are ideal for scenarios demanding high torque capacity, precision fitting, and durability. Their carefully engineered specifications and compliance with international quality standards make them a preferred choice for professionals seeking reliable power transmission solutions. Wh powering agricultural implements through a Hollow Shaft Motor or serving as an Axle Drive Shaft in industrial machinery, MW PTO Drive Shafts stand out as essential Drive Shaft Components that enhance performance and longevity.

Customization:

MW PTO Drive Shafts are expertly crafted in CHINA, designed to meet rigorous performance standards with a shaft diameter of 50 mm and a splined end size of 20 teeth featuring a 50 mm splined end length. Our product customization services allow you to tailor Forging Shafts and Cam Shafts to your specific requirements, ensuring optimal compatibility and efficiency for your machinery. Each Forging Shaft is manufactured with precision and incorporates advanced overload protection safety features to enhance durability and operational safety. Additionally, our PTO Drive Shafts are certified under ISO 9001, guaranteeing high quality and reliability. Trust MW for customized PTO Drive Shafts that deliver exceptional performance and longevity.

Support and Services:

Our PTO Drive Shafts are designed for durability and optimal performance in agricultural and industrial applications. To ensure the longevity and efficient operation of your PTO drive shaft, regular maintenance is essential. Always check for proper lubrication, inspect the shaft for any signs of wear or damage, and ensure that all safety guards are in place before operation.

For technical support, we provide detailed installation guides and troubleshooting manuals to help you address common issues. Replacement parts are available for all standard PTO drive shaft components, and our technicians are ready to assist with any complex repairs or custom requirements.

We recommend using only genuine replacement parts to maintain the integrity and safety of your equipment. If you require assistance with product selection, installation, or maintenance procedures, our support team can provide expert advice to ensure your PTO drive shaft operates at peak efficiency.

Regular servicing and adherence to safety standards will help prevent equipment failure and extend the life of your PTO drive shaft. For optimal results, follow the maintenance schedule outlined in the product manual and consult with our technical support team for any specific concerns or questions.

Packing and Shipping:

Our PTO Drive Shafts are carefully packaged to ensure maximum protection during transit. Each shaft is wrapped in protective materials to prevent damage from moisture, dust, and impact. The packaging is designed to keep the product secure and intact, using sturdy boxes reinforced with cushioning materials.

For shipping, we partner with reliable carriers to guarantee timely and safe delivery to your doorstep. Tracking information is provided with every order so you can monitor your shipment's progress. Wh you need a single PTO Drive Shaft or bulk quantities, we ensure efficient handling and prompt dispatch to meet your requirements.

FAQ:

Q1: What brand manufactures the PTO Drive Shafts?

A1: The PTO Drive Shafts are manufactured by the brand MW.

Q2: Do the PTO Drive Shafts have a specific model number?

A2: No, the PTO Drive Shafts do not have a specific model number.

Q3: Where are the MW PTO Drive Shafts made?

A3: The MW PTO Drive Shafts are made in China.

Q4: What applications are the MW PTO Drive Shafts suitable for?

A4: MW PTO Drive Shafts are suitable for various agricultural machinery and equipment requiring power transmission.

Q5: Are the MW PTO Drive Shafts compatible with standard PTO systems?

A5: Yes, MW PTO Drive Shafts are designed to be compatible with standard PTO systems used in most agricultural equipment.
