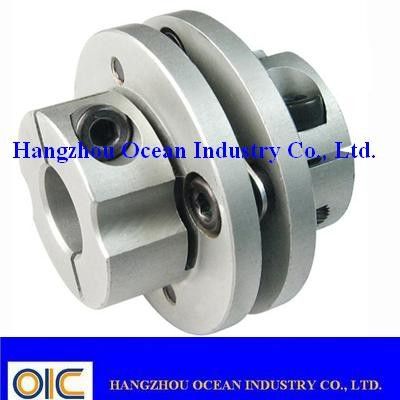

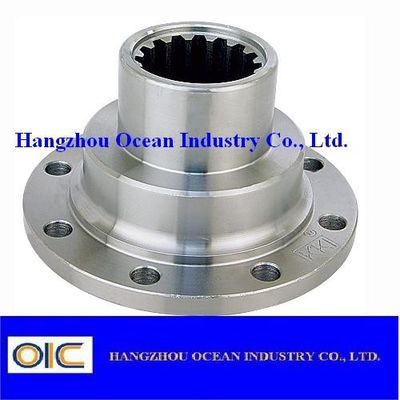

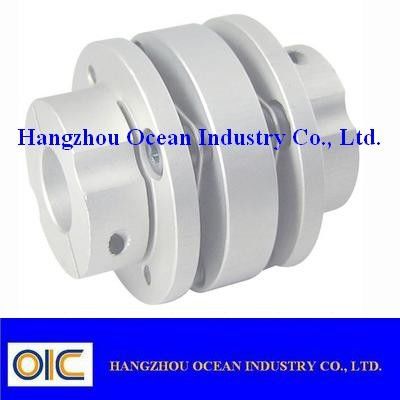

Misalignment Capacity ±3 Degrees Flexible Coupling Parts Featuring High Torsional Stiffness Suitable for in Pumps Motors and Gearboxes

Product Description:

The Flexible Couplings are an essential component designed to connect two shafts together, enabling the transmission of power while accommodating misalignment and reducing stress on connected equipment. Among the various types available, the Aluminum Flexible Coupling stands out due to its exceptional properties and versatile applications. This product is engineered to deliver superior performance in demanding industrial environments, making it an ideal choice for a wide range of machinery.

One of the most significant advantages of the Aluminum Flexible Coupling is its high corrosion resistance. Manufactured from premium-grade aluminum alloys, these couplings are inherently resistant to rust and corrosion, ensuring longevity even in harsh operating conditions. This corrosion resistance not only extends the service life of the coupling but also minimizes maintenance requirements, contributing to reduced downtime and operational costs for industrial facilities.

The Flexible Couplings are available in various sizes, catering to the diverse needs of different industrial machinery. Whether it's small-scale equipment or large, heavy-duty machines, the range of sizes ensures a perfect fit for virtually any application. This versatility allows engineers and maintenance teams to select the optimal coupling size that aligns with their power transmission requirements, shaft dimensions, and space constraints.

One of the critical functional attributes of these couplings is their misalignment capacity. The Aluminum Flexible Coupling is designed to accommodate a misalignment of up to ±3°, which helps to absorb angular, parallel, and axial misalignments between connected shafts. This flexibility reduces the risk of mechanical failures caused by misalignment, such as excessive vibration, noise, and premature wear. By allowing some degree of movement, the coupling protects both the connected equipment and the coupling itself, enhancing overall system reliability.

In terms of application, these couplings are widely used in various types of industrial machinery, including pumps, compressors, conveyors, mixers, and other rotary equipment. Their ability to handle misalignment while transmitting torque efficiently makes them indispensable in industries such as manufacturing, power generation, chemical processing, and material handling. Additionally, the lightweight nature of aluminum helps reduce the overall weight of rotating components, contributing to improved machine efficiency and reduced energy consumption.

The connection type of this Flexible Coupling is flange-based, which offers a robust and secure method of joining the coupling to the shafts. Flange connections provide excellent stability and ease of installation, allowing for quick assembly and disassembly during maintenance or replacement. The coupling sleeve, an integral part of the assembly, acts as the flexible element that absorbs shocks and vibrations. It ensures smooth power transmission while protecting the coupling and connected equipment from damage caused by sudden load changes or misalignment.

Moreover, the coupling sleeve is designed with durability and flexibility in mind. It is engineered to withstand high torque loads and dynamic stresses without compromising its structural integrity. This combination of a sturdy flange connection and a resilient coupling sleeve ensures that the Aluminum Flexible Coupling maintains optimal performance under various operating conditions.

In summary, the Aluminum Flexible Coupling is a high-performance solution for industrial power transmission needs. Its high corrosion resistance, availability in various sizes, and ability to accommodate misalignment up to ±3° make it a reliable and versatile choice. The flange connection type ensures secure attachment, while the coupling sleeve provides the necessary flexibility and shock absorption. Ideal for use in diverse industrial machinery, this coupling enhances operational efficiency, reduces maintenance costs, and prolongs equipment lifespan, making it an indispensable component in modern industrial applications.

Features:

• Product Name: Flexible Couplings
• Max Speed: 10,000 RPM
• Vibration Damping: Yes
• Misalignment Capacity: ±3°
• Material: Stainless Steel
• Certifications: ISO 9001, CE

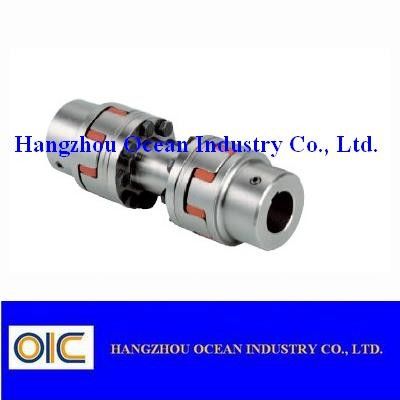

• Type: GR Coupling, Flexible Jaw Coupling
• Durable and reliable GR Coupling design

Technical Parameters:

Applications:

The MW Flexible Couplings are engineered to provide superior performance in a wide range of industrial applications. Designed and manufactured in China, these couplings are renowned for their high corrosion resistance and excellent vibration damping capabilities, making them an ideal choice for demanding operational environments. With a maximum speed of 10,000 RPM and a maximum torque capacity of 500 Nm, MW Flexible Gear Couplings offer reliable and efficient power transmission for various machinery and equipment.

One of the primary application occasions for MW Flexible Gear Couplings is in heavy-duty industrial machinery where precise torque transmission and flexibility are crucial. These couplings are widely used in gearboxes, pumps, compressors, and conveyors, where the need to accommodate misalignment and reduce vibration is paramount to maintaining smooth operation and extending equipment lifespan. The high corrosion resistance ensures that the coupling performs well even in harsh environments, such as chemical plants and offshore installations.

In addition, MW Casing Couplings are frequently employed in the automotive and manufacturing sectors, where the bolt-on installation method facilitates quick and secure assembly. This ease of installation allows for efficient maintenance and replacement, minimizing downtime and operational disruptions. Their ability to handle speeds up to 10,000 RPM makes them suitable for high-speed applications, including electric motors and turbine systems.

Flexible Couplings from MW are also commonly used in scenarios where vibration damping is essential to protect sensitive equipment and enhance operator comfort. Applications in HVAC systems, power generation, and heavy machinery benefit greatly from the vibration reduction properties of these couplings, which help mitigate noise and mechanical wear.

Overall, MW Flexible Gear Couplings, including their robust Casing Coupling variants, are versatile components that address a broad spectrum of coupling needs across industries. Their combination of high torque capacity, corrosion resistance, vibration damping, and ease of installation makes them indispensable in any setup requiring reliable and flexible coupling solutions.

Customization:

MW offers customized Flexible Couplings designed to meet the specific needs of your industrial machinery. Our Flexible Couplings feature a bolt-on installation method and flange connection type, ensuring a secure and reliable fit. Manufactured in China, these couplings are built to withstand temperatures up to 200°C, making them ideal for demanding industrial environments.

We specialize in customizing various types of couplings including Drum Gear Coupling and Aluminum Flexible Coupling, providing solutions that enhance performance and durability. Additionally, our expertise extends to Fire Hose Couplings, ensuring versatility across different applications.

Choose MW for high-quality, flexible coupling solutions tailored to your equipment’s requirements, combining robust design with exceptional functionality.

Support and Services:

Our Flexible Couplings are designed to provide reliable and efficient power transmission in a variety of industrial applications. For optimal performance, it is essential to ensure proper installation, alignment, and maintenance.

Installation: Before installation, verify that the coupling components are free from any damage or debris. Align the shafts accurately to prevent undue stress and wear on the coupling. Follow the torque specifications and assembly instructions provided in the product manual.

Maintenance: Regular inspection of the Flexible Couplings is recommended to detect signs of wear, misalignment, or damage. Lubricate components as specified to extend the service life. Replace any worn or damaged parts promptly to avoid equipment downtime.

Troubleshooting: Common issues such as vibration, noise, or overheating may indicate misalignment, imbalance, or component failure. Check alignment and coupling condition, and make necessary adjustments or replacements.

For technical assistance and detailed service support, please refer to the product documentation or visit our support website. Our team is committed to providing you with the necessary resources to ensure the longevity and performance of your Flexible Couplings.

Packing and Shipping:

Our Flexible Couplings are carefully packaged to ensure maximum protection during transit. Each coupling is wrapped in protective material and securely placed in a sturdy box to prevent any damage.

For bulk orders, couplings are organized in custom-sized cartons with appropriate padding to avoid movement and impact. All packages are clearly labeled with product details and handling instructions.

We offer reliable shipping options including standard and expedited services to meet your delivery needs. Tracking information is provided for all shipments to ensure timely and transparent delivery.

Our packaging and shipping processes comply with industry standards to guarantee that your Flexible Couplings arrive in perfect condition and ready for immediate use.

FAQ:

Q1: What brand manufactures the Flexible Couplings?

A1: The Flexible Couplings are manufactured by the brand MW.

Q2: Where are MW Flexible Couplings made?

A2: MW Flexible Couplings are made in China.

Q3: Are there different model numbers available for MW Flexible Couplings?

A3: No, the Flexible Couplings do not have specific model numbers.

Q4: What applications are MW Flexible Couplings suitable for?

A4: MW Flexible Couplings are suitable for various mechanical power transmission applications where flexibility and vibration damping are required.

Q5: What materials are used in MW Flexible Couplings?

A5: MW Flexible Couplings are typically made from high-quality materials designed to provide durability and flexibility, but specific material details can be obtained from the manufacturer.
