Walking Tractor Chains , type 08B-2 , 12A-2 , 12AH-2
Quick Detail:
Walking Tractor Chains
	Alloy Steel, stainless steel material
	Standard and non-standard chain available
	With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.
Description:
Walking Tractor Chains
1) Chain NO. : 08B-2,12A-2, 12AH-2
2) Any special requirements about pins, attachments, and plates can be meet.
3) Color available: natural, yellow, blue, and so on
We are the leading top Chinese chain manufacturer, and are specializing in various high quality Walking Tractor Chains. We comply with DIN, ANSI, or ISO standard as per customer's request.
	We can also supply chain as below:
	1. Roller chains with straight side plate (A series) ;08A to 48A
	2. Roller chains with straight side plate (B series) :04B to 48B
	3. Short pitch conveyor chain with attachments : O8A to 16B with attachment
	4. Conveyor chain with special attachments (A series) : C08A-1 to C32A-3
	5. Conveyor chain with special attachments (B series) : C08B-1 to C32B-3
	6. Conveyor chain with special attachments : A1,K1,WK1,WK2,WA1,WA2
	7. Short pitch conveyor chain with extended pins
	8.Conveyor chain with special extended pins
	9.Double pitch conveyor chains
	10. Double pitch conveyor chain with attachments
	11.Double pitch conveyor chain with special attachments
	12.Double pitch conveyor chain with extended pins
	13. Double plus chains
	14. Lumber conveyor chain & attachments
	15. Sharp top chains
	16. Roller chain with vulcanised elastomer profiles
	17.Roller chain with U type attachments
	18.Roller chain with plastic attachments
	19. Plastic chains
	20. Roller chain with plastic rollers
	21.Various conveyor chains
	22. Conveyor chains(M series)
	23. Conveyor chain with attachments(M series)
	24. Conveyor chains(MT series)
	25. Hollow pin conveyor chains(MC series)
	26. Conveyor chains(FV series)
	27. Conveyor chain with attachments(FV series)
	28. Conveyor chains(FVT series)
	29. Hollow pin conveyor chains(FVC series)
	30. Non-standard hollow pin conveyor chains
	31. Conveyor chains(Z series)
	32. Conveyor chain with attachments(Z series)
	33. Conveyor chains(ZE series)
	34. Hollow pin conveyor chains(ZC series)
	35. Conveyor chains
	36. Conveyor chain with attachments
	37.Steel chains for age disposal
	38. Special conveyor chains
	39. Universal movement conveyor chains
	40.Conveyor chains for hoisting
	41.Welded conveyor chains
	42. Roller chains for textile machinery
	43.Roller chains for folio transport(Gripper)
	44. Support chains
	45. 78PF1 conveyor chains
	46. Conveyor chains for paper mill
	47. Conveyor chains for metal decorating system
	48.To top chain-curved movement
	49.Double flex chains
	50. Hollow pin chains
	51. Engineering bush chains
	52.Engineering bush chain with attachments
	53. Escalator step-chains
	54. Conveyor chains for steel mill
	55. Scraper conveyor chains
	56. Welded steel chains
	57.Welded steel chain with attachments
	58. Steel pintle chain
	59. Steel pintle chain with attachments
	60. Conveyor chains for fibreboard equipment
	61. Conveyor chains for crawler asphalt paver
	62. Palm oil chains
	63. Sugar chains
	64. Flat-top conveyor chains
Applications:
Our Walking Tractor Chains can be used widely in rototilling, ploughing, harrow-ing in paddy fields, harvesting, drilling, ditching, transportation and etc.If suit-able farm implementa or accessories are attached. In addition, it can also be extensively used as a stationary,power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling,fodder cutting and so on.It can be used for rototilling,ploughing, harrow-ing in paddy fields, harvesting, drilling,ditching, transportation and etc. if suit-able farm implementa or accessories are attached. In addition,it can also be extensively used as a stationary power source for small scale drainage and irrigation,sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Specification:
| Material | Alloy Steel, stainless steel material |
| Process | Assembled |
| Heat treatment | Case hardening, Meshbeltfurnace quenching heat treatment |
| Surface treatment | Blackened, Zinc galvanized, Nickel galvanized, Chroming, Colour Painting, or as per customer's request |
| Performance | High precision, high wear resistance, low noise, smooth and steady, high strength |
| Model number | 08B-2,12A-2, 12AH-2 |
| Packaging | Plastic bag ,carton box ,plywood case or customer requirement. |

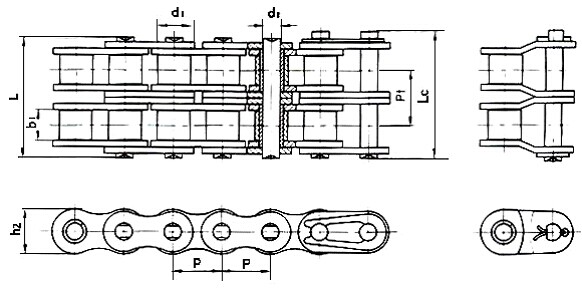

Technique parameter:

| CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ROW SPACING | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | ||
| P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | PT | Q MIN | Q0 | Q | ||
| MM | MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | ||
| 08B-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 13.92 | 32 | 3.76 | 1.34 | |
| 12A-2 | 19.05 | 12.57 | 12.57 | 5.94 | 48.8 | 50.5 | 18 | 22.78 | 63.6 | 83.3 | 2.92 | |
| 12AH-2 | 19.05 | 12.57 | 12.57 | 5.94 | 55.3 | 57.1 | 18 | 26.11 | 63.6 | 84.3 | 3.71 | |
Roller chain, conveyor chain, transmission chain ,industrial chain, stainless steel chain, Lumber conveyor chain, Sharp top chains, Plastic chains, Hollow pin conveyor chains, Steel pintle chain , Special conveyor chain, Welded conveyor chain, Double flex chain, Engineering bush chain, Welded steel chain, Palm oil chains, Sugar chains, Flat-top conveyor chain, heavy duty cranked chain , silent chain , leaf chain , combine chain, agricultural chain , flat top chain , plastic flat top chain , Straight Run Flat Top Chain, Sideflex Flat top Chain, Table Top Chain, Sideflex Flat top Chain, Walking Tractor Chain, Multiflex Chains, forged chain ,cast chain
Competitive Advantage:
More than 20 years advanced technology and experience of us will give strong support for the Walking Tractor Chains you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.
Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.
Take our scale economy, raw material superiority, and sincerity for clients to account, our price do have a great competitiveness. They are good value and cost effective than your imagine.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
