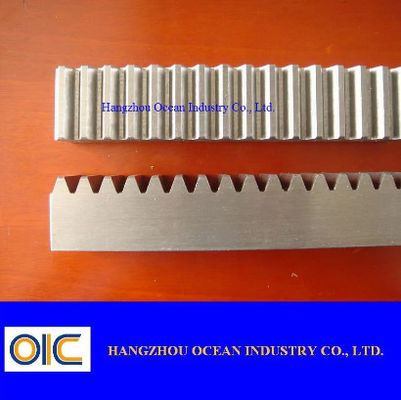

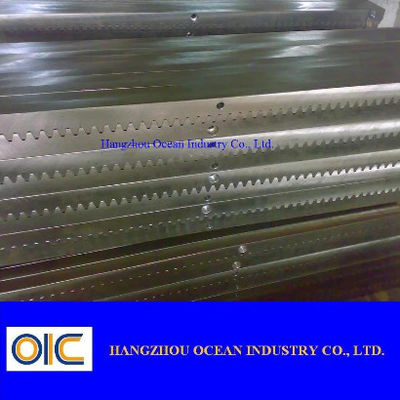

Pitch 20mm Sliding Gate Gear Rack Designed to Support 500kg Load Capacity and 20 Degrees Pressure Angle for Gate Operation

Product Description:

The Sliding Gate Gear Rack is a high-quality, durable component specifically designed for use in Automatic Sliding Gates and Cantilever Racking Systems. Engineered to provide reliable and smooth operation, this gear rack is an essential part of any sliding gate system that demands precision, strength, and longevity. With a tooth width of 10mm and a module of M4, this gear rack ensures optimal meshing with pinions, resulting in efficient power transmission and minimal wear over time.

Weighing 2.5kg, the Sliding Gate Gear Rack strikes an excellent balance between sturdiness and manageability. Its robust construction allows it to handle significant loads, boasting a load capacity of up to 500kg. This makes it an ideal choice for heavy-duty applications, including Cantilever Racking Systems where stability and consistent performance under substantial weight are crucial. The gear rack’s ability to support such heavy loads ensures that Automatic Sliding Gates operate smoothly, even in demanding environments.

Designed with precision, the 10mm tooth width of the gear rack contributes to its durability and efficiency. The wider tooth profile enhances the contact area between the gear rack and the pinion, reducing the stress on individual teeth and extending the lifespan of the entire system. The M4 module specification aligns perfectly with standard pinions used in most Automatic Sliding Gates, making this gear rack a versatile choice for various sliding gate designs and configurations.

In Automatic Sliding Gates, the gear rack plays a pivotal role by converting the rotary motion of the motor-driven pinion into linear motion, allowing the gate to slide open and close effortlessly. The high load capacity of 500kg ensures that the gear rack can handle gates of considerable weight, including large residential, commercial, or industrial gates. This reliability is critical for security systems where gate performance must be consistent and maintenance requirements minimal.

Moreover, the Sliding Gate Gear Rack’s compatibility with Cantilever Racking Systems adds to its versatility. In these systems, the gear rack provides the necessary linear motion to move heavy loads along the racking structure, facilitating smooth and efficient material handling. Its robust construction and precise tooth geometry ensure that it can withstand the rigors of industrial use while maintaining accuracy and operational efficiency.

Installation of the Sliding Gate Gear Rack is straightforward, with precise machining ensuring that it fits seamlessly with existing pinion gears and sliding gate components. The durable materials used in manufacturing resist wear, corrosion, and environmental factors, making this gear rack suitable for outdoor installations where Automatic Sliding Gates are exposed to varying weather conditions.

In summary, the Sliding Gate Gear Rack with a 10mm tooth width, 2.5kg weight, M4 module, and a load capacity of 500kg is an indispensable component for reliable and efficient Automatic Sliding Gates and Cantilever Racking Systems. Its design prioritizes durability, load capacity, and smooth operation, ensuring that gates operate safely and materials are handled effectively. Whether for residential, commercial, or industrial applications, this gear rack delivers exceptional performance, making it a trusted choice for anyone seeking to enhance the functionality and longevity of their sliding gate system.

Features:

• Product Name: Sliding Gate Gear Rack
• Material: High-quality Steel for durability and strength
• Surface Treatment: Galvanized to resist corrosion and extend lifespan
• Pitch: 20mm, ensuring precise and smooth operation
• Length: 1 Meter, suitable for various sliding gate sizes
• Module: M4, compatible with standard gear systems
• Ideal for use with Car Steering Rack mechanisms
• Enables Fast Sliding Gate Opener performance for efficient access control
• Compatible with Barrier Gate Motor systems for reliable automation

Technical Parameters:

Applications:

The MW Sliding Gate Gear Rack is a highly reliable and customizable solution designed to enhance the performance of various gate automation systems. Manufactured in China, this gear rack features a tooth width of 10mm and a pressure angle of 20 degrees, ensuring smooth and efficient meshing with pinions for optimal power transmission. Its module size of M4 allows for precise engagement and long-lasting durability, making it suitable for demanding industrial and commercial applications.

One of the primary application occasions for the MW Sliding Gate Gear Rack is in the drive systems of pallet racks. In such environments, the gear rack plays a crucial role in enabling seamless movement and positioning of heavy loads. By integrating this gear rack with motorized drives, warehouse operators can achieve precise and controlled drive in pallet rack operations, improving both safety and productivity. The customizable size of the MW gear rack allows it to be tailored to fit specific pallet rack dimensions and load requirements.

Another significant scenario where the MW Sliding Gate Gear Rack excels is in fast sliding gate openers. Residential, commercial, and industrial properties often require sliding gates that operate swiftly and smoothly for security and convenience. The silver-colored MW gear rack, with its robust construction, can withstand frequent use and harsh environmental conditions, ensuring consistent performance. Its 20-degree pressure angle and 10mm tooth width contribute to low noise operation and minimal wear, making it ideal for fast sliding gate opener systems that demand reliability and longevity.

Additionally, the MW Sliding Gate Gear Rack is well-suited for integration with gate valve gearboxes. In various industrial processes, gate valves regulate the flow of fluids through pipelines, and the gearboxes controlling these valves must deliver precise and dependable motion. By using the MW gear rack in these drive mechanisms, operators can achieve smooth and accurate valve positioning, enhancing process control and safety. The gear rack’s customizable specifications allow it to be adapted to different gearbox designs and operational requirements.

In summary, the MW Sliding Gate Gear Rack is a versatile and high-performance component ideal for use in drive in pallet rack systems, fast sliding gate openers, and gate valve gearbox applications. Its customizable size, durable silver finish, and precise tooth geometry make it a preferred choice for engineers and system integrators seeking reliable and efficient gear rack solutions.

Customization:

MW Sliding Gate Gear Rack offers customizable size options to perfectly fit your specific gate requirements. Manufactured in CHINA, this steel gear rack features a straight tooth design with a tooth width of 10mm and a tooth height of 8mm, ensuring durability and smooth operation. Ideal for use with DC Sliding Gate Motors, our gear racks provide reliable performance for fast sliding gate openers and electric sliding gate openers. Customize your gear rack size to enhance the efficiency and longevity of your sliding gate system.

Support and Services:

Our Sliding Gate Gear Rack is designed for durability and smooth operation in various gate automation systems. For technical support, please ensure the gear rack is properly aligned and securely mounted to prevent operational issues.

Regular maintenance is recommended to extend the lifespan of the gear rack. This includes cleaning the gear teeth to remove debris and applying appropriate lubrication to reduce friction and wear.

If you experience any issues such as unusual noise, excessive wear, or misalignment, inspect the rack and pinion system for damage or obstructions. Replace any worn or damaged components promptly to maintain optimal performance.

For installation, verify that the gear rack sections are correctly joined and firmly fixed to the gate structure. Proper alignment with the motor’s pinion gear is critical to ensure smooth and efficient movement.

Our technical support team is available to assist with troubleshooting, installation guidance, and maintenance tips to help you achieve reliable operation of your sliding gate system.

Packing and Shipping:

The Sliding Gate Gear Rack is carefully packaged to ensure maximum protection during transit. Each gear rack is wrapped in protective material to prevent scratches and damage, then securely placed in a sturdy cardboard box. For bulk orders, the gear racks are stacked and separated by cushioning materials to avoid contact and impact.

All packages are labeled clearly with handling instructions and product details to facilitate smooth shipping and delivery. We use reliable shipping carriers to ensure timely and safe arrival of the Sliding Gate Gear Rack to your location.

For international shipments, the packaging complies with all export regulations and includes necessary documentation to avoid customs delays. Additionally, we offer customized packaging options upon request to meet specific customer requirements.

Our commitment is to deliver the Sliding Gate Gear Rack in perfect condition, ready for immediate installation upon arrival.

FAQ:

Q1: What brand manufactures the Sliding Gate Gear Rack?

A1: The Sliding Gate Gear Rack is manufactured by the brand MW.

Q2: Does the Sliding Gate Gear Rack have a specific model number?

A2: No, this product does not have a specific model number.

Q3: Where is the Sliding Gate Gear Rack made?

A3: The Sliding Gate Gear Rack is made in China.

Q4: What materials are used to make the MW Sliding Gate Gear Rack?

A4: The MW Sliding Gate Gear Rack is typically made from high-quality steel to ensure durability and smooth operation.

Q5: Is the Sliding Gate Gear Rack compatible with most sliding gate motors?

A5: Yes, the MW Sliding Gate Gear Rack is designed to be compatible with most standard sliding gate motors for easy installation and reliable performance.
