30000 Units Heavy Duty Shelf Racks Featuring 20mm Width Durable Steel Construction for Warehouse Storage and Industrial

Product Description:

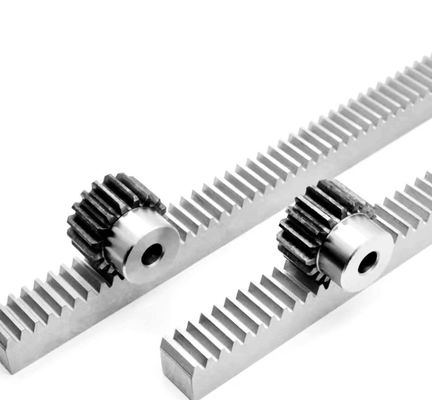

The Gear Racks featuring a straight tooth profile are precision-engineered components designed to deliver reliable and efficient power transmission in various mechanical applications. With a module (Mod) of 1M, these racks are perfectly suited for systems requiring high accuracy and smooth operation. Each rack is manufactured under stringent quality standards to ensure optimal performance and durability.

One of the standout characteristics of these Gear Racks is their brand-new condition, guaranteeing that users receive a product free from wear or defects. This new condition ensures maximum lifespan and consistent performance, making these racks an excellent choice for both new machinery and replacement parts in existing setups.

The width of the rack is precisely 20mm, providing a balanced combination of strength and compactness. This width makes the racks versatile enough to be integrated into different mechanical assemblies without compromising space or functionality. Whether used in small-scale gear mold applications or larger industrial machinery, the 20mm width ensures a robust and stable engagement with mating gears.

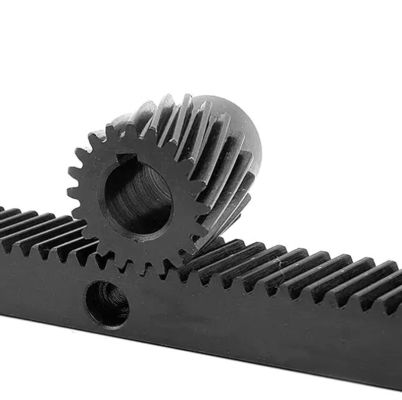

Surface treatment plays a crucial role in the longevity and operational efficiency of gear racks. These racks are treated with black oxide, a process that enhances surface hardness and corrosion resistance. The black oxide finish not only contributes to the aesthetic appeal of the racks but also provides a protective layer that reduces wear and tear during prolonged use. This treatment is particularly beneficial in environments where the racks may be exposed to moisture or other corrosive elements.

These Gear Racks are ideal for a variety of applications, including precision gear mold manufacturing where accuracy and reliability are paramount. The straight tooth profile ensures smooth meshing with pinions, reducing noise and vibration during operation. This makes them highly suitable for industries requiring quiet and efficient power transmission systems.

In addition, the racks are widely used in heavy bag rack systems where durability and strength are critical. Their sturdy construction and surface treatment enable them to withstand the demanding conditions of heavy-duty mechanical setups. Whether it’s for industrial automation, material handling, or specialized machinery, these racks provide dependable performance under heavy loads.

Furthermore, these Gear Racks are compatible with CC Racks, offering flexibility and ease of integration into existing gear systems. The standardized module size and tooth profile facilitate seamless combination with other rack types, allowing engineers and designers to customize gear assemblies according to specific requirements. This compatibility enhances the versatility of the product and broadens its range of applications.

Overall, the Gear Racks with a straight tooth profile, 1M module, and 20mm width, treated with black oxide and delivered in new condition, represent a high-quality solution for various mechanical and industrial needs. Their robust construction, precise dimensions, and protective surface finish make them a reliable choice for gear mold applications, heavy bag rack systems, and compatibility with CC Racks. Investing in these gear racks ensures enhanced performance, extended service life, and reduced maintenance costs in gear-driven machinery.

Features:

• Product Name: Gear Racks
• Processing Method: Hobbing for precise and efficient manufacturing
• Condition: New, ensuring high quality and durability
• Usage: Ideal for Sliding Gate Motor applications
• Tooth Profile: Straight teeth for smooth operation
• Color: Natural finish
• Suitable for Euro Racks systems
• Perfect for use in Fishing Gear Parts

Technical Parameters:

Applications:

The MW M4 Gear Racks, manufactured in China with precision hobbing processing, are designed to meet the rigorous demands of industrial machinery applications. Engineered with a module of 1.0 and a straight tooth profile, these gear racks provide exceptional accuracy adhering to DIN 6 standards, making them ideal for a wide range of heavy-duty operational scenarios.

One of the primary application occasions for the MW M4 Gear Racks is within Heavy Duty Storage Racks systems. In warehouses and large storage facilities, these gear racks enable smooth and reliable movement of storage units, facilitating efficient space utilization and easy access to stored goods. Their robust construction ensures they can withstand continuous heavy loads, making them perfect for environments where durability and precision are crucial.

In the realm of industrial equipment, the MW M4 Gear Racks serve as essential components in CNC gear rack assemblies. These racks are pivotal in translating rotary motion into linear motion within CNC machines, ensuring high precision and repeatability during machining operations. The straight tooth profile and DIN 6 accuracy guarantee minimal backlash and smooth engagement with pinions, which is critical for maintaining tight machining tolerances.

Furthermore, these gear racks are widely used in various heavy machinery where precise linear motion is required, such as automated assembly lines, robotic arms, and material handling systems. Their compatibility with CNC equipment also makes them suitable for modern manufacturing environments that demand high levels of automation and precision.

Thanks to their high manufacturing standards and reliable performance, MW M4 Gear Racks are favored in scenarios where equipment longevity and operational stability are paramount. Whether for upgrading existing industrial machinery or designing new equipment, these CNC gear racks provide an excellent solution that combines accuracy, strength, and durability.

In summary, the MW M4 Gear Racks are perfectly suited for heavy duty storage racks, industrial machinery, and CNC gear rack applications. Their precise manufacturing process, adherence to DIN 6 accuracy, and robust design ensure they perform reliably under demanding conditions, making them a trusted choice for a variety of industrial and heavy equipment scenarios.

Customization:

MW presents the M4 Gear Racks, expertly designed and manufactured in China to meet your heavy-duty requirements. Featuring a durable black oxide surface treatment, these gear racks offer excellent resistance to wear and corrosion, ensuring long-lasting performance.

With a module size of 1.0 and a natural color finish, the M4 Gear Racks are ideal for use in sliding gate motor applications, providing smooth and reliable operation. Our production capability of 30,000 units guarantees timely delivery and consistent quality for your projects.

Perfectly suited for Heavy Duty Shelf Racks, Equipment, and CC Racks, MW's M4 Gear Racks combine precision engineering with robust materials to support your industrial needs effectively.

Support and Services:

Our Gear Racks are designed to provide reliable and precise performance in a wide range of industrial applications. For optimal operation, ensure proper alignment and secure mounting according to the installation guidelines provided in the product manual.

Regular maintenance of the Gear Racks includes lubrication with appropriate grease to minimize wear and prevent corrosion. Inspect the racks periodically for signs of damage, wear, or misalignment, and replace components as necessary to maintain system integrity.

When selecting gear racks, consider the load capacity, module size, and material compatibility with your application to ensure efficient power transmission and longevity of the product.

For technical support, refer to the detailed datasheets and installation instructions available on our website. Our support team is ready to assist with troubleshooting, custom solutions, and product recommendations to meet your specific requirements.

In addition to standard gear racks, we offer custom machining and finishing services to tailor the product to your unique operational needs. Contact our engineering department for consultation on special projects and bulk orders.

Adhering to these guidelines will help you maximize the performance and lifespan of your Gear Racks, ensuring smooth and efficient mechanical motion in your equipment.

Packing and Shipping:

Each Gear Rack is carefully packaged to ensure maximum protection during transit. The product is securely wrapped in protective materials and placed inside a sturdy, custom-sized box to prevent any damage. Our packaging is designed to withstand rough handling and environmental factors, ensuring that your Gear Rack arrives in perfect condition.

We offer reliable shipping options with tracking available for all orders. Shipping times may vary depending on your location, but we strive to dispatch all orders promptly to provide a smooth and timely delivery experience. For international shipments, customs regulations and duties may apply.

If you have any special packaging or shipping requirements, please contact our customer service team, and we will do our best to accommodate your needs.

FAQ:

Q: What is the brand name of the Gear Rack?

A: The brand name of the Gear Rack is MW.

Q: What is the model number of this Gear Rack?

A: The model number of this Gear Rack is M4.

Q: Where is the MW Gear Rack manufactured?

A: The MW Gear Rack is manufactured in China.

Q: What materials are used to make the MW M4 Gear Rack?

A: The MW M4 Gear Rack is typically made from high-quality steel to ensure durability and strength.

Q: What applications is the MW M4 Gear Rack suitable for?

A: The MW M4 Gear Rack is suitable for various mechanical and automation applications, including robotics, machinery, and conveyor systems.
