Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys

China Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys supplier
Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys supplier Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys supplier Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys supplier

Large Image :  Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys

Product Details:

Place of Origin: China
Brand Name: MW
Certification: ISO
Model Number: T2.5 , T5 , T10

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: Standard sea worthy package
Delivery Time: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 1000000Pieces /Week
Detailed Product Description
High Light:

power Transmission Parts

,

precision transmission parts

Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys





Quick Detail:



Timing Belt Pulley

Aluminum, Steel and so on material
Standard and non-standard Timing Belt pulley available
With high quality and com

petitive price

Prompt delivery

Package as per customer’s demand.





Description:



We are the leading top Chinese manufacturer, and are specializing in various high quality timing belt pulley

1. European standard and American standard

2. Material: 1045 carbon steel, aluminum alloy, brass and nylon available.

3. Surface treatment: black oxidized, phosphate, anodize, zinc-plating

4. Tolerance: conform to customers requirement

5. Pilot bore, taper bore, QD bore

6. OEM/ODM service offered

7. Timing pulley type: T2.5, T5, T10





Applications:

Our timing belt pulley are used in Textile Machineries, Pulp & Paper mill Machineries, Pharmaceutical Machineries, Printing Machineries, Packaging Machineries, Rolling Mill Machineries, Graphite Machineries, Food Processing Machineries, Material Handling Pulleys, Bakery Machineries, Plastic Machineries, General Machineries, Mechanical Machineries, Hydraulic Machineries, Automobile Industries.





Specification:

Pulley Teeth Profile

HTD:

3M,5M,8M,14M,20M

T&AT:

T2.5,T5,T10, AT5,AT10,AT20

English pitch:

 MXL/ 0.80" , XL/ 1/5" ,L/ 3/8" ,H/ 1/2" .XH/ 7/8" , XXH/ 1.25" ,

STPD:

S2M,S3M,S4.5M,S5M,S8M,S14M

RPP:

5M,8M,14M,20M

PGGT (Power Grip GT)

2MR,3MR,5MR,8MR,14MR

PCGT  (Poly Chain GT)

8M,14M

Bore type:

taper bore

pilot bore/straight bore







Pulley Materials

Type

Characteristics

Aluminum

suitable for moderate power transmission

light weight / reduced rotational inertia

moderate chemical and corrosion resistance

standard material for stock pulleys

Steel

suitable for high power transmission

durable

limited chemical and corrosion resistance

aesthetic material

Stainless Steel

suitable for high power transmission durable

meets FDA regulations

excellent chemical and corrosion resistance

aesthetic material

Delrin

suitable for high power transmission

excellent chemical and corrosion resistance

nonmetallic

stainless steel flanges recommended



Technique parameter:



Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys

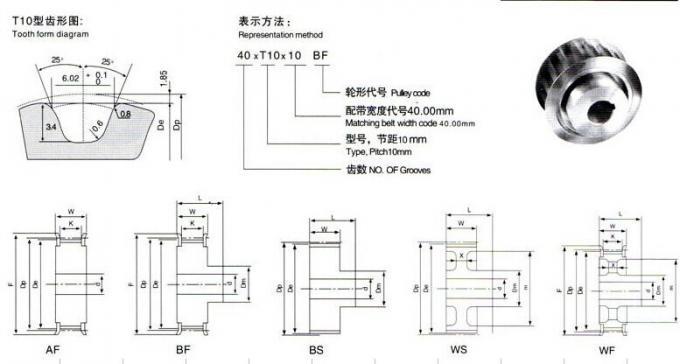

T10 (40mm)

ITEM

TEETH

STRUCTURE

Dp

O.D.(De)

W

L

K

X

Dm

 d

E

 Flange I.D.

Flange Type

T10

12

A/B

38.2

36.35

47

57

42

-

25

10

-

43

28

F-154328

T10

14

A/B

44.56

42.07

47

57

42

-

30

10

-

47

34

F-154734

T10

15

A/B

47.75

45.9

47

57

42

-

33

10

-

51

36

F-155136

T10

16

A/B

50.93

49.05

47

57

42

-

35

10

-

57

41

F-156741

T10

18

A/B

57.3

55.45

47

57

42

-

37

12

-

61

41

F-156141

T10

20

A/B

63.66

61.8

47

57

42

-

40

12

-

69

50

F-156950

T10

22

A/B

70.03

68.15

47

57

42



40

12



74

53

F-157453

T10

24

A/B

76.39

74.55

47

57

42

-

40

12

-

83

63

F-158363

T10

25

A/B

79.58

77.73

47

57

42

-

40

12

-

86

66

F-158666

T10

26

A/B

82.76

80.9

47

57

42

-

45

12

-

86

66

F-158666

T10

28

A/B

89.13

87.28

47

57

42

-

45

12

-

93

75

F-159375

T10

30

A/B

95.49

93.65

47

57

42

-

45

12

-

99

78

F-159978

T10

32

A/B

101.86

100

47

57

42

-

50

14

-

105

84

F-1510584

T10

36

A/B

114.59

112.75

47

57

42

-

50

14

-

118

90

F-1511890

T10

40

A/B

127.32

125.45

47

57

42

-

50

14

-

131

111

F-15131111

T10

44

B/W

140.06

138.2

47

57

42

15

55

16

120

-

-

-

T10

48

B/W

152.79

150.9

47

57

42

15

55

16

132

-

-

-

T10

50

B/W

159.15

157.3

47

57

42

15

60

16

140

-

-

-

T10

60

B/W

190.99

189.14

47

57

42

15

60

16

170

-

-

-

Timing Belt Pulley , Aluminium Timing Pulley , Timing Belt Tensioner Pulleys

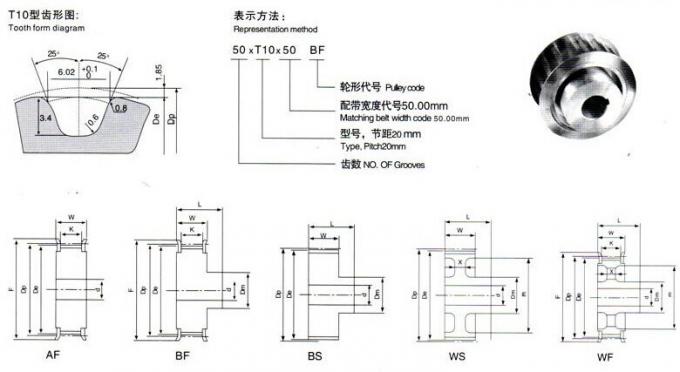

T10(50mm)

ITEM

TEETH

STRUCTURE

Dp

O.D.(De)

W

L

K

X

Dm

 d

E

 Flange I.D.

Flange Type

T10

12

A/B

38.2

36.35

57

67

52

-

25

10

-

43

28

F-154328

T10

14

A/B

44.56

42.07

57

67

52

-

30

10

-

47

34

F-154734

T10

15

A/B

47.75

45.9

57

67

52

-

33

10

-

51

36

F-155136

T10

16

A/B

50.93

49.05

57

67

52

-

35

10

-

57

41

F-156741

T10

18

A/B

57.3

55.45

57

67

52

-

37

12

-

61

41

F-156141

T10

20

A/B

63.66

61.8

57

67

52

-

40

12

-

69

50

F-156950

T10

22

A/B

70.03

68.15

57

67

52



40

12



74

53

F-157453

T10

24

A/B

76.39

74.55

57

67

52

-

40

12

-

83

63

F-158363

T10

25

A/B

79.58

77.73

57

67

52

-

40

12

-

86

66

F-158666

T10

26

A/B

82.76

80.9

57

67

52

-

45

12

-

86

66

F-158666

T10

28

A/B

89.13

87.28

57

67

52

-

45

12

-

93

75

F-159375

T10

30

A/B

95.49

93.65

57

67

52

-

45

12

-

99

78

F-159978

T10

32

A/B

101.86

100

57

67

52

-

50

14

-

105

84

F-1510584

T10

36

A/B

114.59

112.75

57

67

52

-

50

14

-

118

90

F-1511890

T10

40

A/B

127.32

125.45

57

67

52

-

50

14

-

131

111

F-15131111

T10

44

B/W

140.06

138.2

57

67

52

18

55

16

120

-

-

-

T10

48

B/W

152.79

150.9

57

76

52

18

55

16

132

-

-

-

T10

50

B/W

159.15

157.3

57

67

52

18

60

16

140

-

-

-

T10

60

B/W

190.99

189.14

57

67

52

18

60

16

170

-

-

-

timing pulley, timing belt pulley, gt2 timing pulley, aluminium timing pulley, xl timing belt pulley, mxl timing pulley, small timing belt pulley, at20 timing pulley, timing belt tensioner pulleys, t2.5 timing pulley, t5 timing pulley, taper bush timing pulley, time belt tensioner pulley, aluminium timing belt pulley, timing idler pulley, t2.5 timing belt pulley, steel timing belt pulleys, xl timing pulley, t2.5 t5 t10 t20 timing belt pulley, stainless steel timing pulley, mxl timing belt pulley, pulleys for timing belts, htd timing belt pulley, aluminum timing pulley with flanges, htd 8m timing belt pulley, timing pulley t10, cast iron timing pulley, timing pulley bar, timing belt pulley conveyor belt pulleys, timing belt pulleys for machine, timing belt and pulley, htd timing pulley, timing pulley stock, t10 timing pulley, at10 timing pulley





Competitive Advantage:



More than 20 years advanced technology and experience of us will give strong support for the timing belt pulley you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.

Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.

Take our scale economy, raw material superiority, and sincerity for clients to account, our price has a great competitiveness. They are good value and cost effective than your imagine.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
